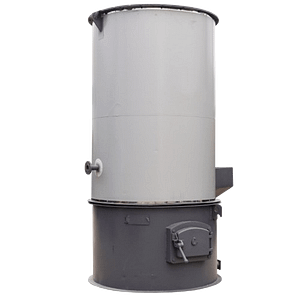

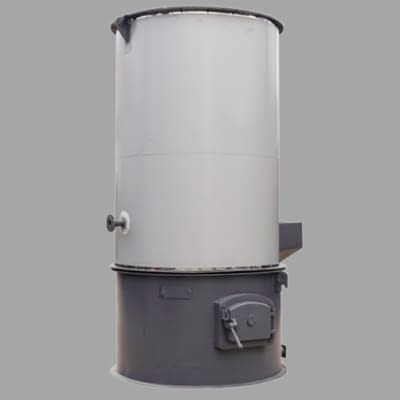

YGL series biomass thermal oil Boiler is a new type of special boiler with low pressure and high temperature working characteristics, and its heating temperature can reach 340 ℃ in liquid phase or 400 ℃ in vapor phase. It can be used for heating in various production occasions where uniform and stable heating is required and direct heating by flame is not allowed. It generally uses waste wood and biomass as fuel, and heat-conducting oil as the medium. The hot oil circulating oil pump is used to force the medium to circulate in the liquid phase, and the heat energy is transported to the heating equipment and then returned to the heating furnace for reheating. Obtain high working temperature, and can perform high-precision control work on the operation of the medium. The system has high heat utilization rate and convenient operation and maintenance. It is an ideal heating equipment for safety, high efficiency and energy saving.
Characteristics Of YGL Series Biomass Thermal Oil Boiler
- The use of fast assembly structure factory, convenient transportation, simple installation, save installation costs.
- Liquid phase circulation heating, no condensation discharge heat loss, heating system thermal efficiency can be improved.
- Before circulating heating, there are measures to strictly control the air, moisture and other low volatile content in the working medium.
- The main baking paint packaging process, bright and generous color, resistance to a lot of corrosion.
- The use of biomass particles as fuel, fuel cost is lower than gas thermal oil furnace.
Technical Data Of YGL Series Biomass Thermal Oil Boiler
Type | YGL-120T | YGL-240T | YGL-350T | YGL-500T | YGL-700T | YGL-1000T | YGL-1200T |
Rated thermal power | 120kw | 240kw | 350kw | 500kw | 700kw | 1000kw | 1200kw |
Thermal efficiency | 73% | ||||||
Rated steam pressure | 0.8MPa | ||||||
Maximum working temperature | 320℃ | ||||||
Capacity | 0.07m³ | 0.22m³ | 0.28m³ | 0.38m³ | 0.55m³ | 0.75m³ | 0.86m³ |
Circulating oil volume | 12.5m³/h | 20m³/h | 40m³/h | 60m³/h | 80m³/h | 100m³/h | 100m³/h |
Piping connection diameter | DN50 | DN80 | DN80 | DN100 | DN100 | DN125 | DN125 |
Diameter | 1215mm | 1500mm | 1650mm | 1700mm | 2030mm | 2160mm | 2160mm |
Height | 2310mm | 2750mm | 2850mm | 3300mm | 3450mm | 4250mm | 4250mm |
Weight | 2500kg | 3200kg | 4800kg | 5300kg | 5800kg | 6200kg | 6700kg |
Application Of YGL Series Biomass Thermal Oil Boiler
YY(Q)W series gas oil thermal oil boiler is widely used for the following industrial production
- Chemical industry – oil chemical industry, polymerization industry, reaction tank, distillation, concentration.
- Plastic industry – plastic firing, extrusion molding.
- Textile industry – resin molding machine, dyeing machine, drying room, high temperature machine, drum machine.
- Rubber industry – rubber vulcanization heating.
- Food industry – cooking, drying, vegetable oil refining.
- Paper industry – packaging cartons of multi-layer cardboard, drying, drying.
- Other industry- metal plating bath heating, coating condensation, drying, industrial distillation, reduction, concentration, dehydration, etc
