Complete daily maintenance operations for steam boilers (Simple and practical, directly executable by teams)

I. Check before starting each shift (Mandatory)
Water level inspection
Check that the water level in the water level gauge is within the normal range (1/2 to 2/3), and there is no shortage or full water.
Regularly flush the water level gauge to prevent blockage and false water level.

Pressure and Instruments
The pressure gauge indicates normally and the pointer is not stuck. The pressure gauge is within the validity period of verification.
The safety valve is in good condition, without jamming or leakage, and the lead seal is intact.

Water Supply and Water Quality
Check if the water softener is operating normally and if the water level in the water tank is sufficient.
Raw water must not be directly fed into the furnace to prevent scaling, bulging and pipe burst.

Combustion and pipelines
There is no leakage in the gas/fuel pipeline and the valve opening and closing status is correct.
The fan, water pump and circulating pump have no abnormal noise, no vibration and the oil level is normal.
The flue and damper are unobstructed and well-sealed.

Electrical automatic control
The indicator lights on the control cabinet are normal, the alarm system, ultra-low water level and overpressure protection are in good condition.
The emergency stop button and interlock protection are sensitive and effective.

Ii. Daily Inspection during Operation (once every 1 to 2 hours)
Stable control: Steam pressure, temperature and water level should be kept stable. Overpressure and overloading operation are strictly prohibited.
Regular blowdown (blowdown at the bottom of the boiler) : 1 to 2 times per shift, quick blowdown in a short time to remove sludge and sediment.
When discharging sewage, observe the water level. Discharging sewage at a low water level is strictly prohibited.
Furnace body appearance: No bulges, leakage, weld leakage or flange leakage.
Flue gas indicators: The color of the exhaust gas is normal, with no black or yellow smoke emitted. The burner is operating normally.
Equipment temperature: The temperatures of the bearings, motors and pump bodies are normal, and there is no overheating or scalding to the touch.

Iii. Maintenance after each shift’s shutdown
Close the fuel valve, shut down the burner, fan and water pump, cut off the power and hang a sign.
Cleaning: Carbon deposits and dust in the furnace and burner; Clean the dust collector and filter screen.
Inspection: Check for any leakage in manholes, handholes, flanges and valves.
Record: Fill in the operation log (pressure, water level, material consumption, sewage discharge, faults).

Iv. Daily Maintenance
Clean the conduits of the water level gauge and pressure gauge to ensure they are unobstructed.
Check all valves: they should operate smoothly without any internal or external leakage.
Check the liquid levels of water treatment chemicals, resins and salt tanks, and replenish salt and chemicals in a timely manner.
Wipe the boiler body and control cabinet to keep the machine room clean and well-ventilated.

V. Weekly maintenance
Manual tests: Manual safety valve tripping test, high and low water level alarm, overpressure interlock test.
Check the ash accumulation in the flue, chimney, economizer and air preheater. Clean the ash if necessary.
Lubrication: Apply grease to the bearings of the fan and water pump, and check the tightness of the belt.
Comprehensive leak detection: Soapy water leak detection for gas pipelines to eliminate leakage hazards.

Vi. Monthly maintenance
Internal inspection: Open the handhole to simply check the scaling and corrosion conditions of the drum and the heating surface.
Cleaning: Dust removal from the surface of the economizer and condenser, and descaling of the heat exchanger.
Calibration: Water quality testing (hardness, alkalinity, PH), if not up to standard, adjust water treatment promptly.
Tightening: All pipe flanges, anchor bolts and flue bolts are fully tightened.

Vii. Long-term Shutdown Maintenance (Key Anti-corrosion)
Short-term shutdown of the furnace (within 7 days) : Full water maintenance, maintain water level and slight pressure, and isolate from air.
Long-term shutdown of the furnace
Dry maintenance: Place desiccants inside the drying furnace and close the manhole valve.
Wet maintenance: Add corrosion inhibitors, fill with water and seal, and regularly test water quality.

Viii. Daily Prohibitions (Life-saving Clause)
It is strictly prohibited to operate with water shortage, full water, overpressure or overload.
It is strictly prohibited to disassemble the safety valve or block the interlock protection during operation.
It is strictly prohibited to carry out maintenance or tighten bolts under pressure.
It is strictly prohibited to leave scale untreated or to fail to discharge pollutants for a long time.
Unlicensed personnel are strictly prohibited from operating the boiler.

Ix. Simple Mnemonic Rhymes (Easy for Teams to Remember
Before starting work, check the water level and pressure gauge to ensure they are correct.
Frequent drainage during operation ensures that the water quality is not compromised.
After work, clear the accumulated dust and check for leaks or shortages in the valves.
Test the safety valve weekly and check for scale and mold prevention monthly.
When shutting down the furnace, it should be divided into dry and wet conditions. Safety comes first.

The working principle of the hot blast stove, the core of the hot blast stove can be summed up in one sentence:
Fuel is burned to heat the air, and then the hot air is blown out for drying, heating or as process air.

1. Basic structure
It mainly consists of a few parts
Combustion chamber: Burns coal/gas/oil/biomass to generate high-temperature flue gas
Heat exchange chamber: It enables high-temperature flue gas and cold air to exchange heat
Fan: Air supply, smoke exhaust
Control system: Temperature control, fire control, and safety protection

2. Work process
Supply air
Cold air is drawn in by the fan from the air inlet and enters the heat exchange channel.
Combustion heating
The fuel burns in the combustion chamber, generating a large amount of high-temperature flue gas.
The flue gas does not blow directly onto the material but transfers heat to the air through the metal wall.
Heat exchange
Cold air absorbs the heat of flue gas and turns into hot air
The flue gas is cooled down and then discharged through the chimney
For exhaust use
Hot air is sent out from the air outlet for:
Drying of grains, medicinal materials and wood
Heating for workshops and greenhouses
Drying process for industrial production lines

3. Brief summary
The hot blast stove is
The fire generates heat → heats the air → The fan sends out the hot air
Meanwhile, the controller automatically controls the temperature. In case of over-temperature, flameout or malfunction, it will automatically stop fire for protection.

The steam boiler blower (also known as the supply fan) is the core auxiliary equipment of the boiler and is called the “lung of the boiler”. It is mainly responsible for forcibly sending combustion-supporting air into the furnace to ensure the complete combustion of fuel.
Function: Supply air for combustion assistance, regulate the combustion intensity, and cooperate with the induced draft fan to maintain negative pressure in the furnace chamber
Common type: Centrifugal fan
Matching: Generally used together with the induced draft fan, one for supply and one for extraction
Key point: The air volume and air pressure should match the tonnage of the boiler. Biomass boilers usually require a larger air volume

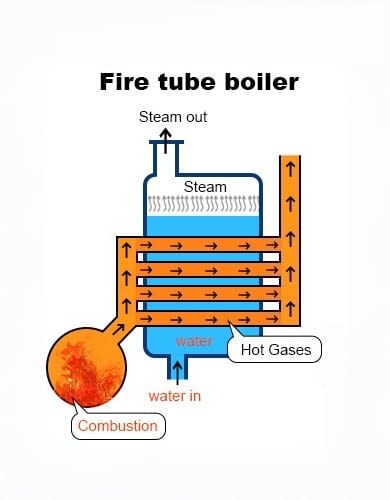

Fire-tube boiler (smoke tube boiler
Principle: Flue gas flows inside the pipe, while water flows outside.
Features: Simple structure, low cost, and low water quality requirements; However, it has low pressure, low efficiency and small capacity.
Applicable: Small enterprises, hotels, and heating in residential areas.

Water-tube boiler
Principle: Water flows inside the pipe, while flue gas is heated outside the pipe.
Features: Strong pressure-bearing capacity, high thermal efficiency, and large evaporation capacity; The structure is complex and the water quality requirements are high.
Applicable to scenarios such as power stations and large factories that require high-pressure and large-capacity steam.

1.The core process is essential and determines the success or failure of the saponification reaction
The most crucial process in soap production is the saponification reaction. Oils and caustic soda must react fully under constant temperature heating conditions.
The steam boiler provides a stable heat source, which is uniformly heated through the jacket and coil of the reaction vessel to ensure complete saponification and balanced reaction of raw materials. Without steam heating, the reaction will be slow and saponification will be incomplete, resulting in problems such as soft soap, easy dissolution, substandard quality and serious waste of raw materials.

2. The entire production process is temperature-controlled to ensure stable product quality
The multiple processes of soap production rely on constant-temperature thermal energy:
Melt the oil, mix the raw materials and keep them warm to prevent solidification and caking.
The soap base is steamed and purified through salting out to separate glycerol from impurities.
Drying and dehydration of soap materials, cooling and blending, and constant-temperature mixing of flavorings and additives.
The steam temperature is gentle, the pressure is controllable, and the heat supply is uniform. It avoids local high temperatures burning the soap material and low temperatures causing production breaks, ensuring that the hardness, color, shelf life and usage feel of the soap are uniform and stable.

3. Continuous production core to enhance production efficiency
The soap factory belongs to the continuous processing industry. The steam boiler can stably supply steam for 24 hours, meeting the simultaneous heating needs of multiple reaction vessels, drying equipment and production lines.
It features fast heating speed and adjustable load, significantly shortening the melting, reaction and drying cycles of raw materials, reducing manual waiting and downtime. It is a key basic equipment for large-scale mass production and increasing production capacity.

4. Reduce production costs and save production energy consumption
Compared with electric heating, coal-fired earthen furnaces and thermal oil furnaces:
Industrial steam boilers have high thermal efficiency and low energy consumption, while gas/biomass steam boilers have even lower operating costs.
The heat energy transmission loss of steam is small, and it can be centrally heated and uniformly distributed. It is suitable for the common use of multiple processes throughout the factory, reducing the investment in multiple sets of heating equipment and compressing equipment and operation and maintenance costs.

5. Meet the requirements of hygiene and production safety
Steam can be used for high-temperature disinfection and sterilization of workshop equipment, pipelines and containers, preventing raw materials from getting moldy and bacteria from breeding, and meeting the hygiene production standards for daily chemical products.
Formal industrial steam boilers are equipped with pressure stabilizing, explosion-proof and protective devices, ensuring safe and controllable heating. Compared with open flame heating, there is no open flame and no risk of local overheating, avoiding the risk of flammability and explosiveness of oils and chemical raw materials.
6. Adapt to the comprehensive heating demands of the factory area
In addition to the production process, the boiler steam can also be used for auxiliary purposes such as workshop heating, pipeline heat tracing and anti-freezing, heating for sewage treatment, and factory area cleaning. It is multi-functional and can meet the heating needs of all scenarios in soap factories.

7. Comply with industry compliance production standards
In the environmental impact assessment and production standards of the daily chemical and soap manufacturing industries, it is a hard requirement to have a closed and clean heat source and environmentally friendly heating equipment.
Low-emission, automated operation, complete procedures and compliant acceptance of steam boilers that meet standards are necessary conditions for factories to legally start production, pass environmental protection inspections and operate for a long time.

Without stable and clean steam, it is difficult to produce high-quality and high-yield flower essential oils. The steam boiler is the core power source of the entire essential oil distillation process, and its significance is mainly reflected in the following aspects:

1. Provide stable and controllable distillation temperature
Most flower essential oils are heat-sensitive substances. If the temperature is too high, they will decompose, change color and flavor. Boilers can precisely control the steam pressure and temperature to ensure that the distillation is gentle and uniform, avoid local overheating, and retain the floral fragrance and effective components to the greatest extent

2. Ensure the extraction efficiency and oil yield of essential oils
Steam has strong penetrating power and can penetrate deep into the interior of petals and stamens, “bringing out” the essential oil. Continuous and stable gas supply ensures that the distillation process is not interrupted, resulting in more complete oil extraction. Compared with other heating methods, the oil yield is significantly higher and more stable

3. Ensure that the essential oil is pure and odorless
The boiler produces clean steam, free of smoke, dust and fuel smell. It will not contaminate essential oils and will not affect the purity and color of the aroma. The purity of the extraction of high-value floral essential oils such as rose and jasmine is of vital importance

4. Achieve large-scale and industrialized production
The small-scale ones can only be used for experiments. Only xinda boilers can support batch processing, capable of simultaneously operating multiple distillation devices. They have high output and low cost, making them suitable for centralized flower harvesting and rapid processing within a short period of time

5. Safe and reliable, suitable for continuous operation
Compared with open flame heating, steam heating is more uniform, less likely to burn the pot or scorch the ingredients, and is safer. It features multiple protection systems such as pressure, water level and temperature, making it suitable for long-term distillation. It is easy to operate and has low labor costs, making it suitable for flower farmers and processing plants

6. Compatible with various flower extraction techniques
Steam distillation, water distillation and water distillation can all be used. The steam size can be adjusted to be compatible with rose, lavender, mugwort, osmanthus, jasmine, etc. It has strong versatility and one set of equipment can be used to produce various types of flower essential oils

In conclusion, the steam boiler determines the quality, oil yield, aroma purity and production scale of essential oils, and is an irreplaceable key equipment in the extraction of floral essential oils.

The common working pressures of steam boilers, classified by application and scenario, have a very clear range, directly providing you with the most practical range:

Low-pressure boiler (the most commonly used
Working pressure: 0.4 MPa to 1.25 MPa
It is widely used in: food, pharmaceuticals, washing, dyeing and printing, small-scale chemical industry, heating, and disinfection

Medium-pressure boiler
Working pressure: 1.6 MPa to 2.5 MPa

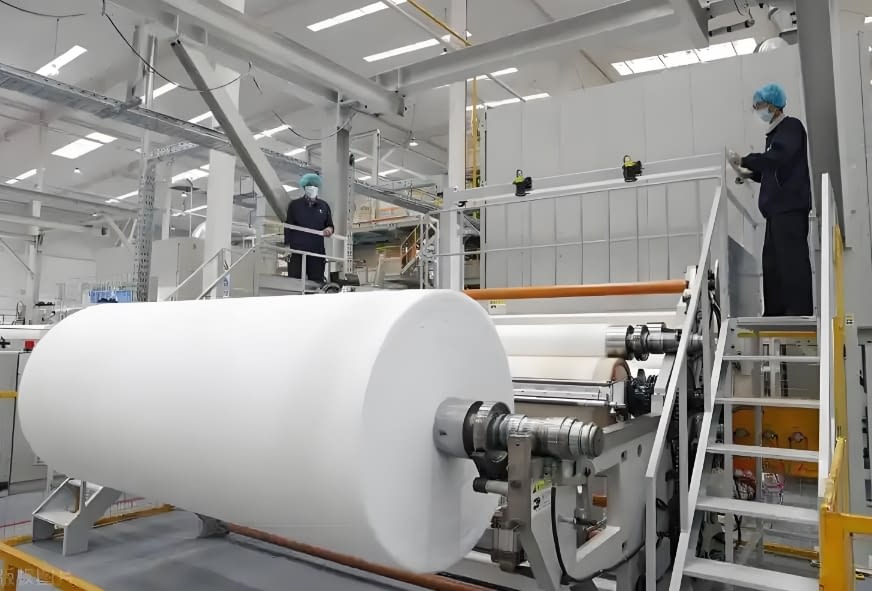

It is widely used in: medium-sized factories, papermaking, rubber, and some chemical processes

Medium and high-pressure boiler
Working pressure: 3.8 MPa to 5.3 MPa
It is mostly used for: small power stations and large-scale industrial centralized steam supply

Factories, canteens, hospitals and hotels: 0.7 MPa or 1.0 MPa are the most common
Slightly higher requirements: 1.25MPa, 1.6MPa
Very few civilian or small-scale industrial applications exceed 2.5 MPa
If you tell me the purpose (such as food sterilization, garment factories, heating, etc.), we can directly tell you the most suitable pressure.

The following is a separate explanation of the applicable scope, suitable industries, and unsuitable scenarios of biomass steam boilers and gas-fired steam boilers, to facilitate your direct comparison and selection.

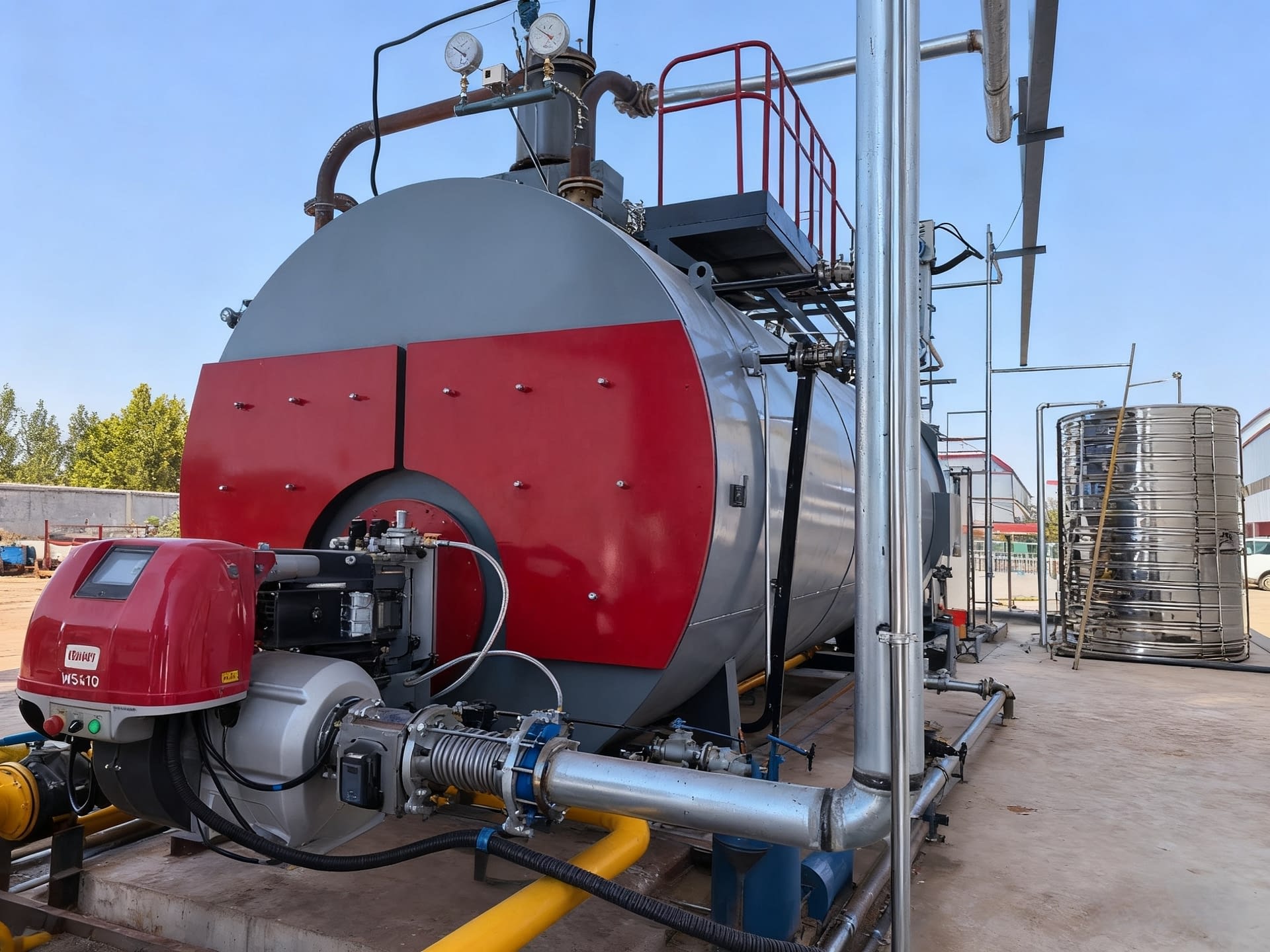

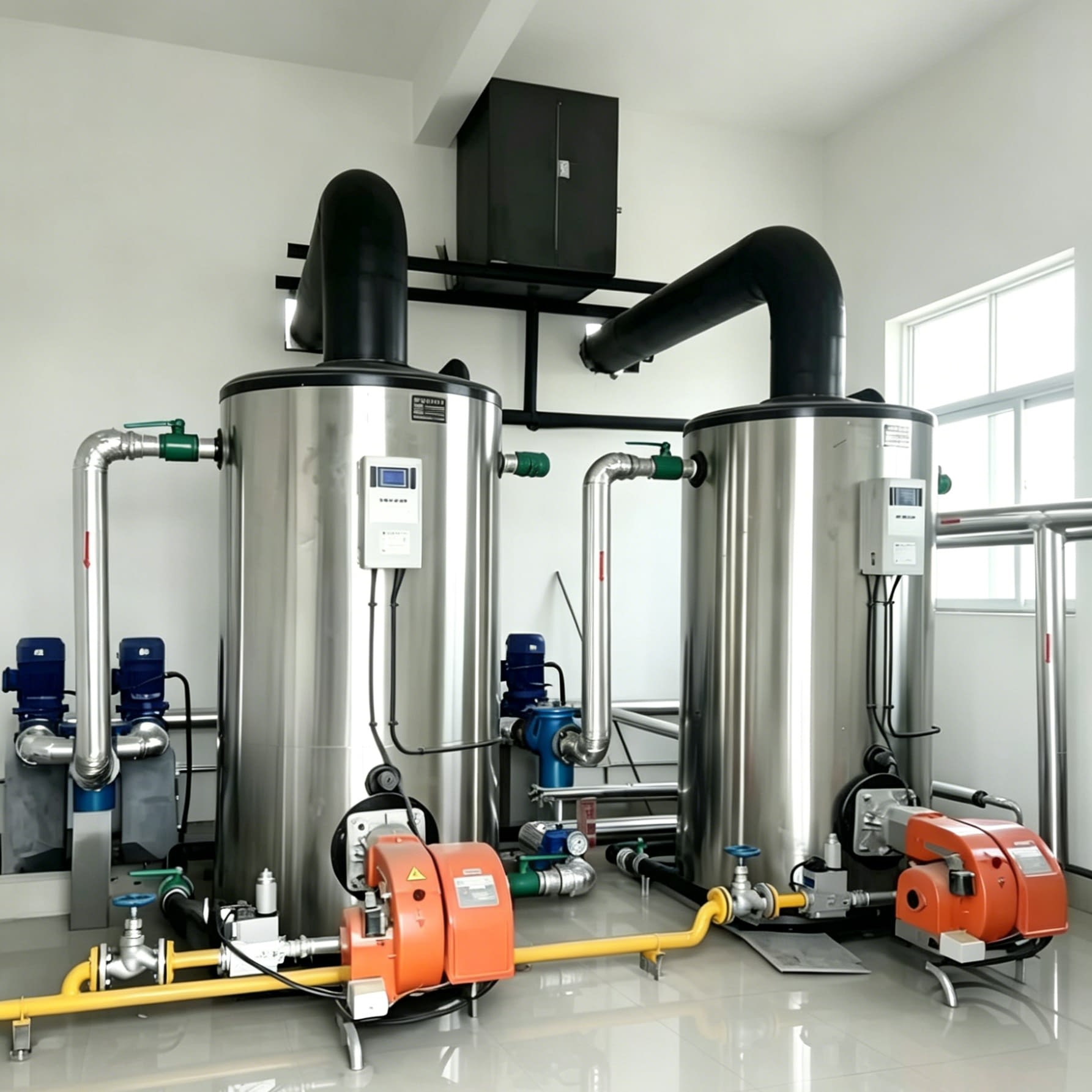

I. Application Scope of Gas-fired Steam Boilers
Suitable for: Users with high environmental protection requirements, small sites, a pursuit of worry-free and stable operation, and automated operation
Applicable industries

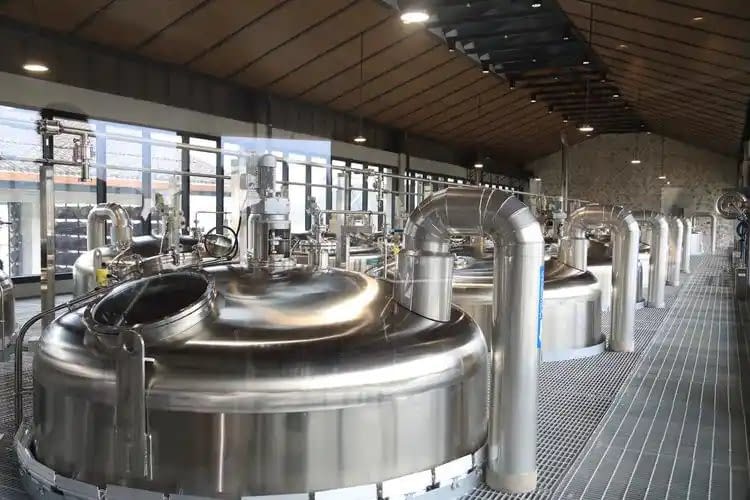

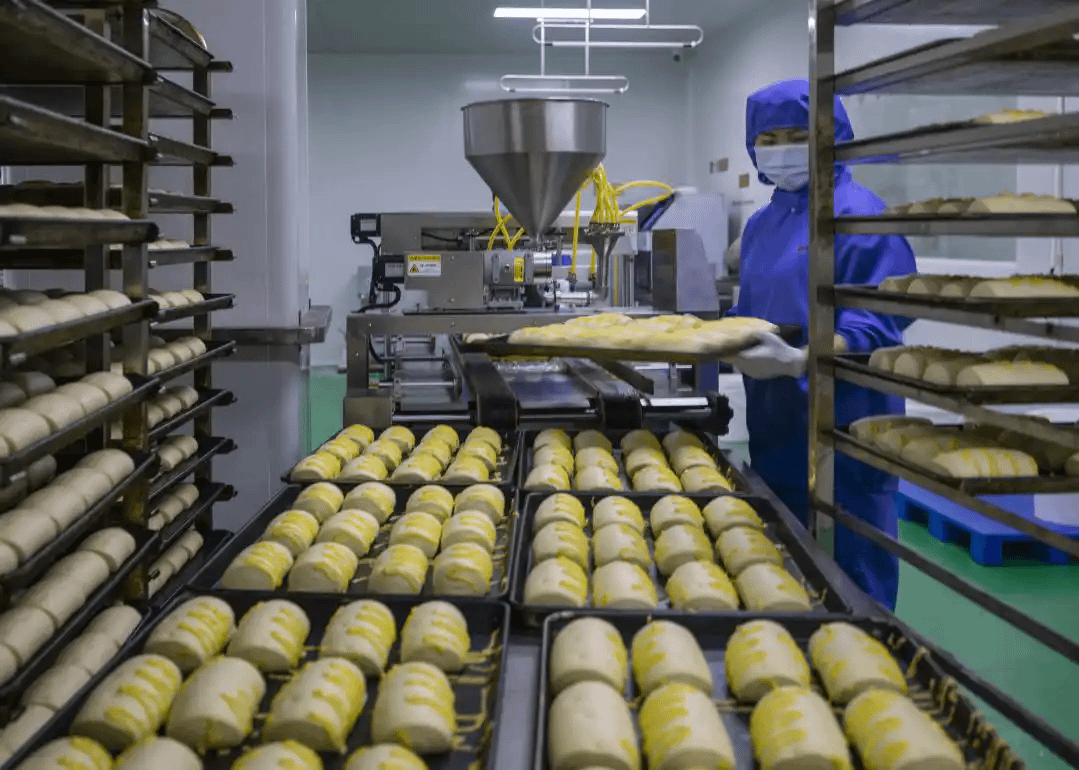

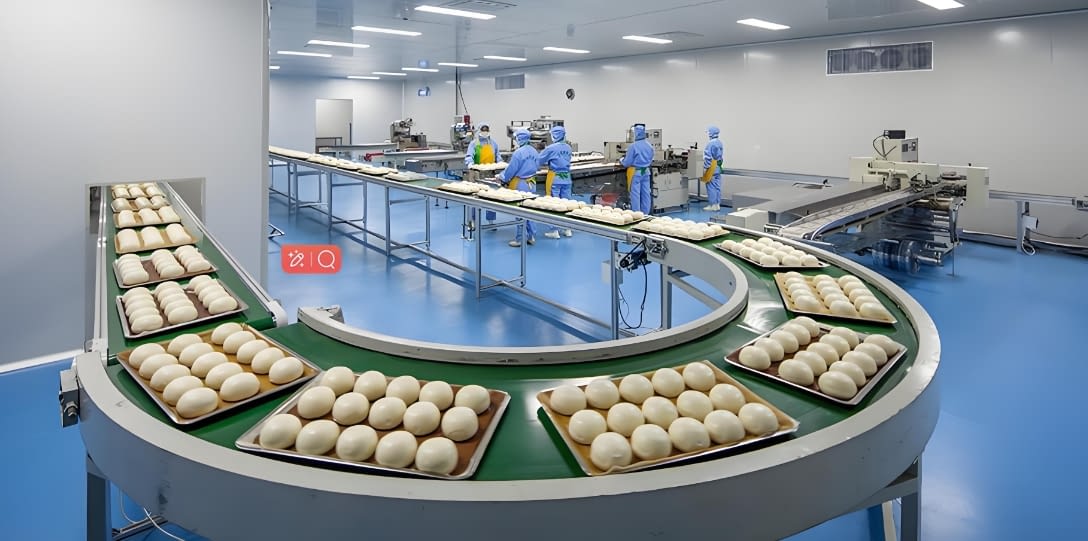

Food processing, beverages, brewing

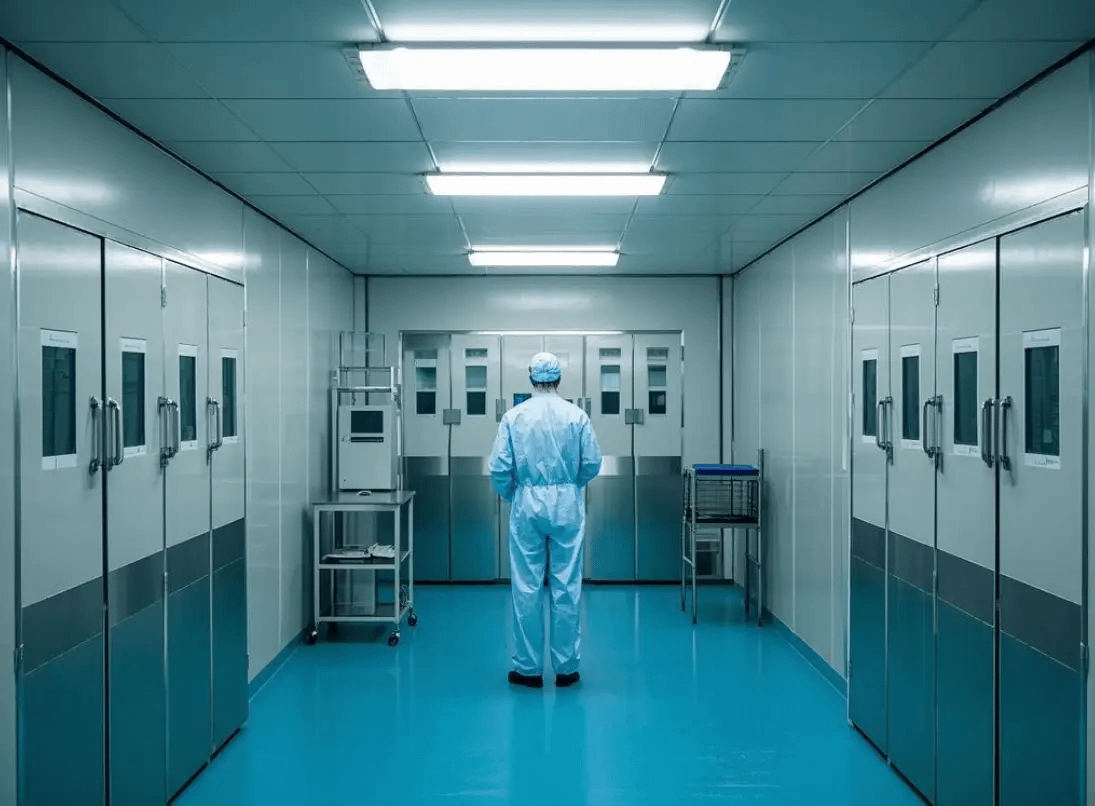

Pharmaceutical and hospital disinfection

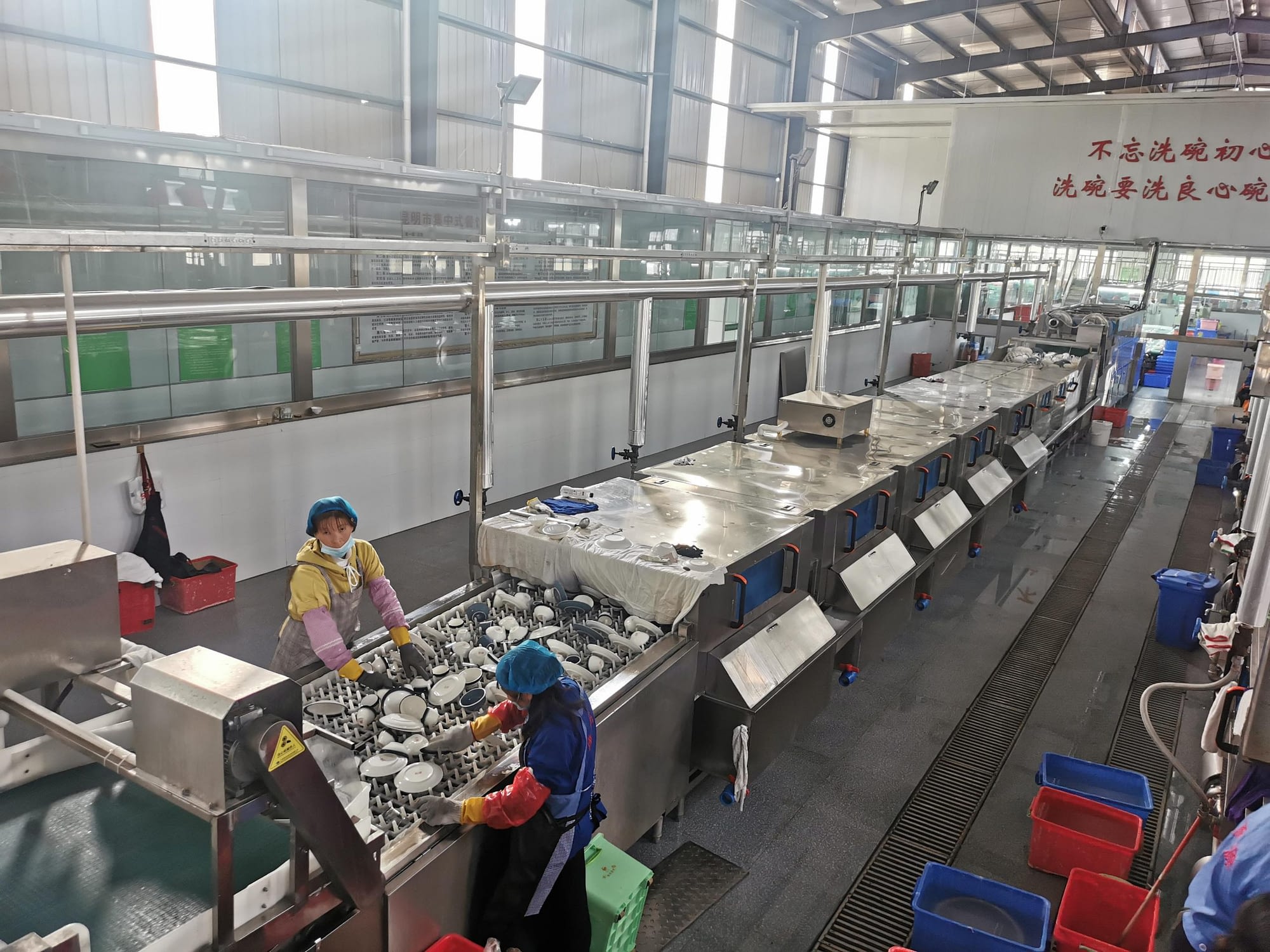

Schools, hotels, canteens, bath centers

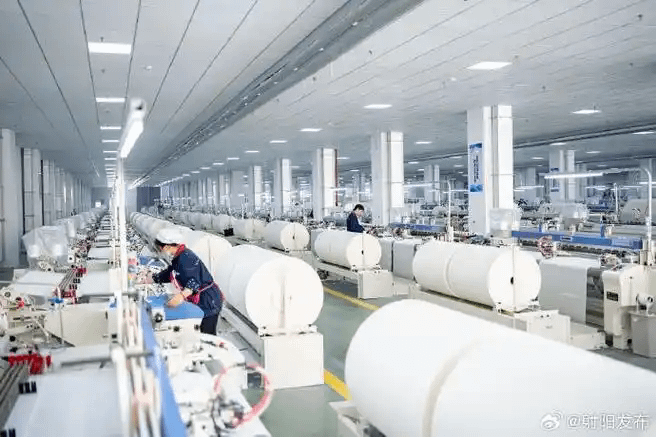

Textile, printing and dyeing, packaging

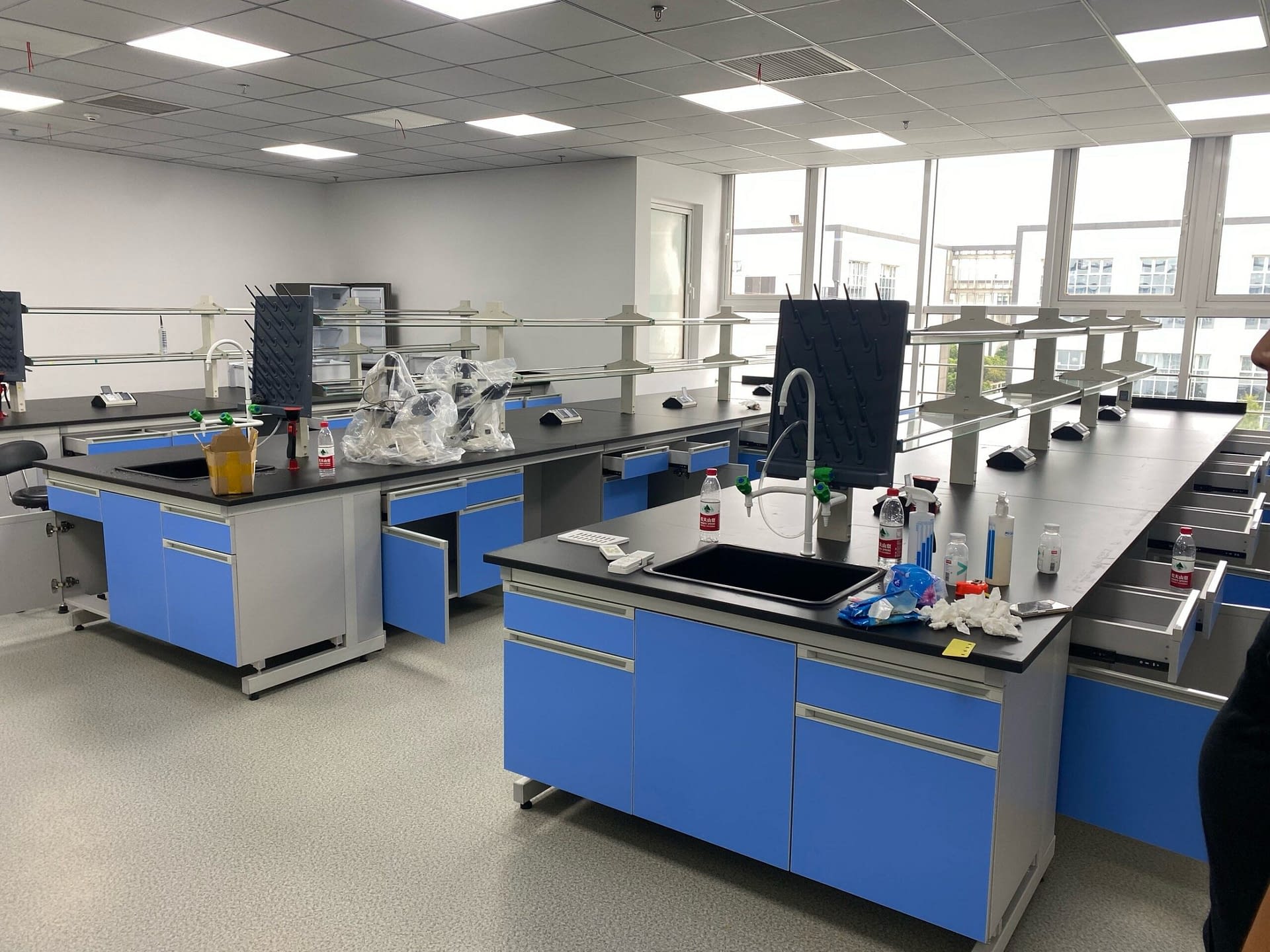

Electronics, chemical engineering (with high cleanliness requirements)

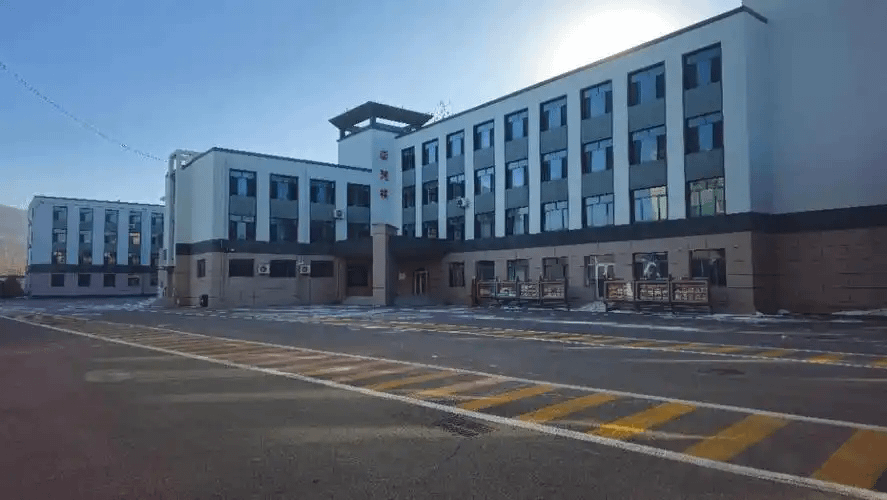

Centralized heating for office buildings and residential areas
Applicable scenarios
Urban areas, industrial parks, and regions with strict environmental protection control
The site is small and there is no space to store fuel
It is hoped that it can operate fully automatically, with less manual labor and less maintenance
The steam load fluctuates greatly and requires frequent start-ups and shutdowns
The requirements for flue gas emissions are extremely high (dust-free, low nitrogen)
Not suitable
Areas not covered by natural gas pipelines
Pursue the ultimate low operating cost (gas fees are usually higher than biomass fees)

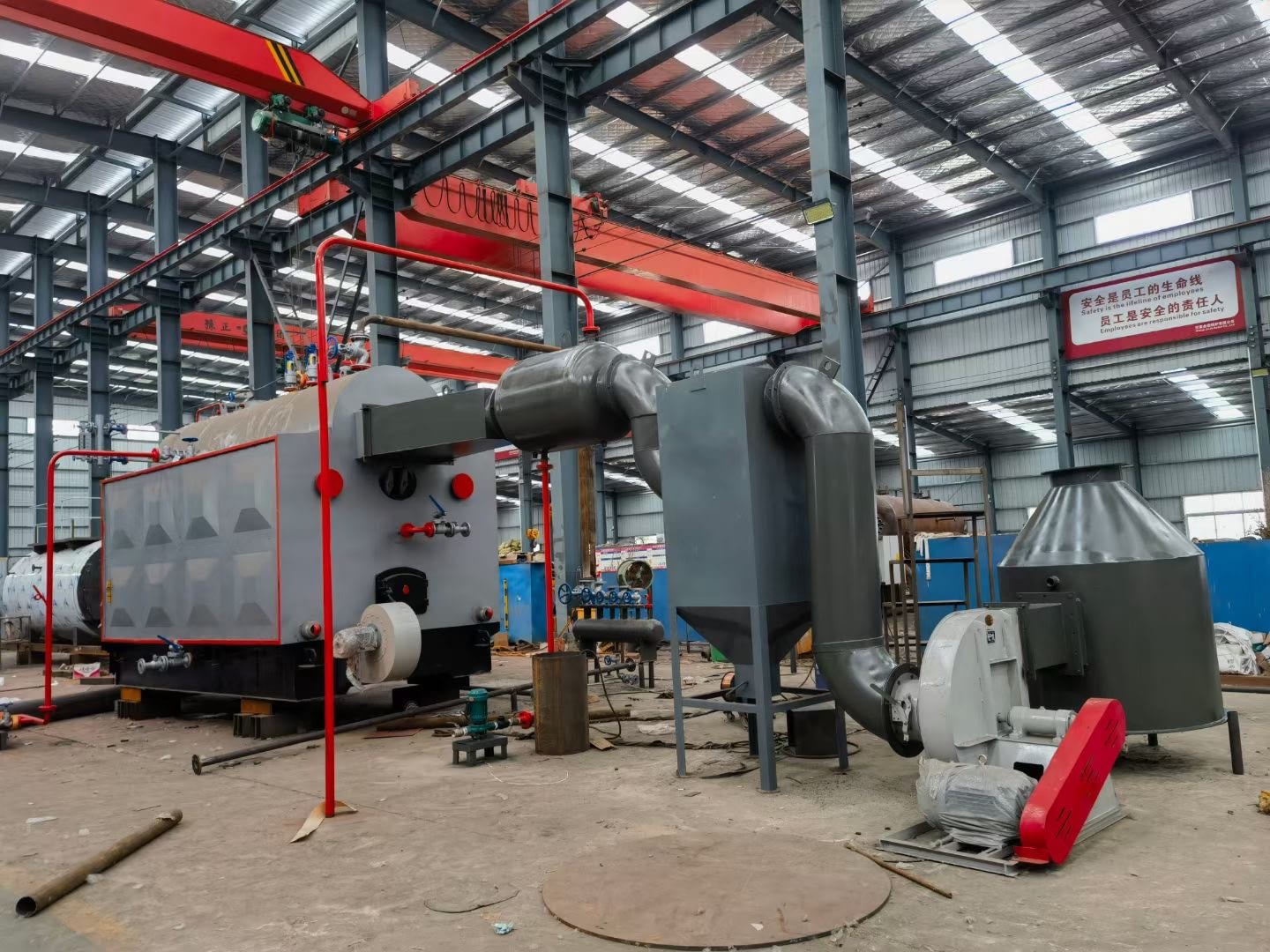

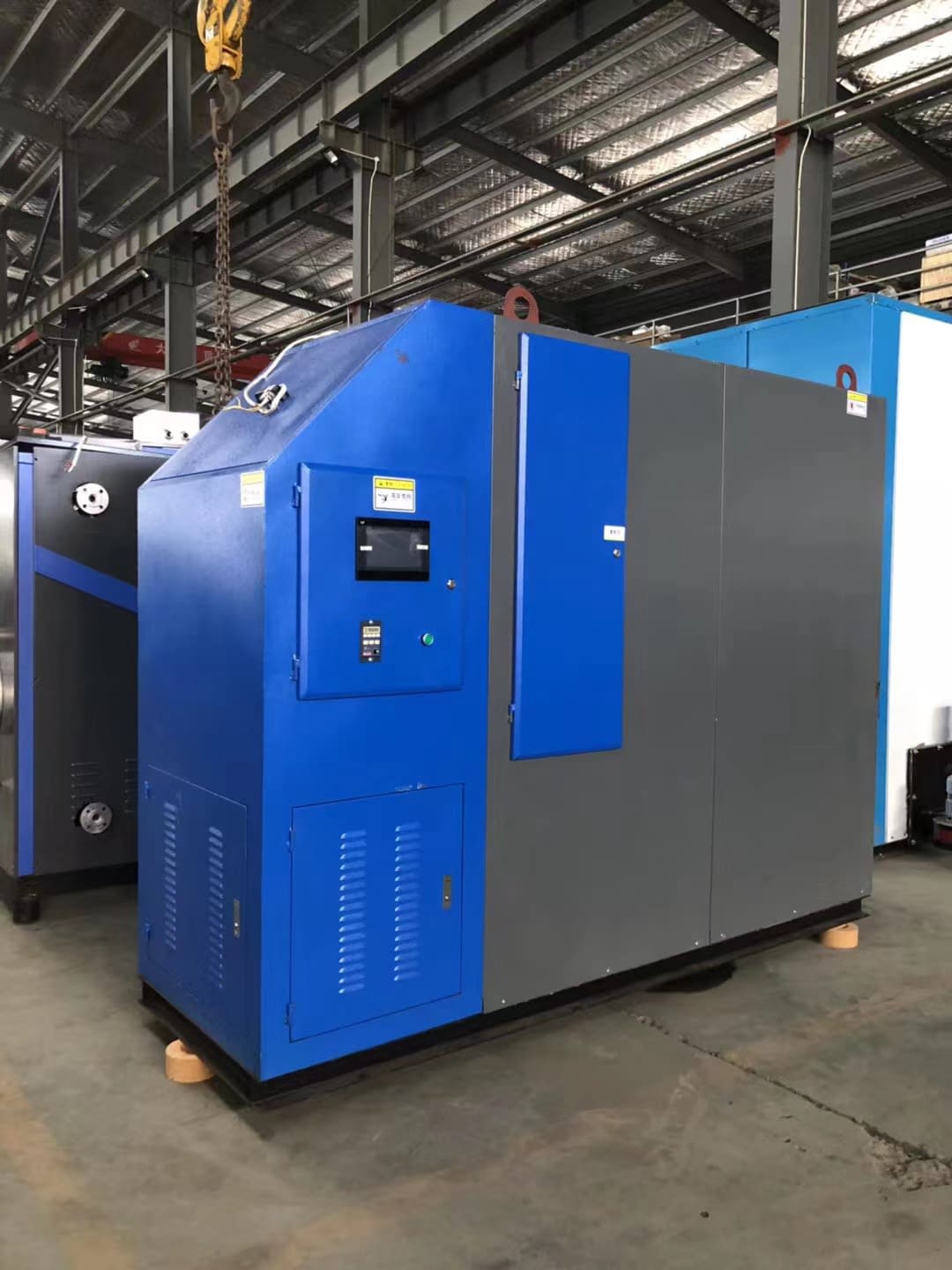

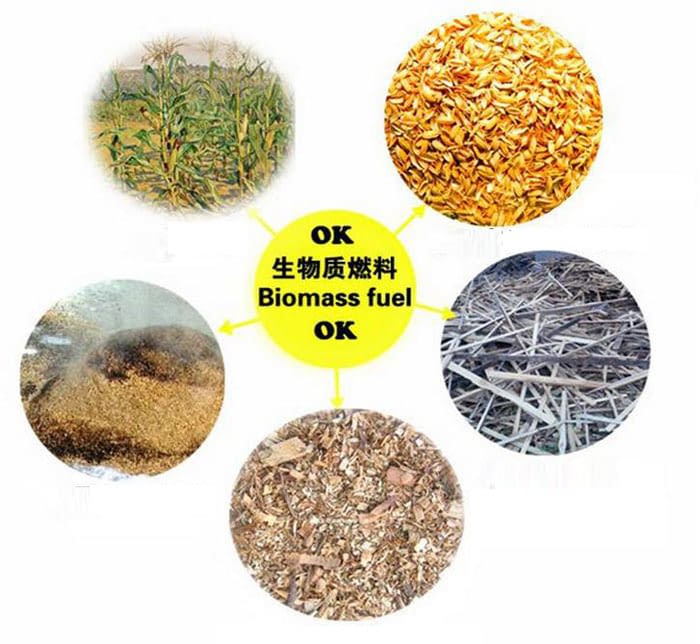

Ii. Application Scope of Biomass Steam Boilers
Suitable for: Users who have cheap fuel, sufficient space, can produce continuously for 24 hours, and pursue low operating costs
Applicable industries
Wood processing, furniture factory
Papermaking, feed, and grain processing
Rubber, building materials, ceramics
Wineries, starch factories, and biological fermentation
Enterprises with a large amount of agricultural and forestry waste (sawdust, rice husks, straw)
Applicable scenarios
Suburbs, towns and villages, and areas with relatively lenient environmental protection policies
The site is large and can be used to build material silos and store fuel
Continuous steam supply for 24 hours with stable load
There is a supply of cheap biomass pellets/wood chips nearby
I want to minimize the operating costs
Not suitable
The main urban area of the city and the areas strictly controlled for environmental protection
The site is small and there is no space for stacking
Low steam consumption and frequent starts and stops
I don’t want manual slag removal, ash cleaning or grate maintenance
Three. Quick distinction in one sentence
Gas boiler: urban area, clean, worry-free, stable, a bit more expensive
Biomass boilers: suburban, cost-effective, consume more fuel, take up more space, and require more maintenance

You can also contact us. I will tell you whether gas or biomass is more suitable and give you more precise suggestions.

A commercial and household dual-purpose hot water boiler is a device that can not only meet the daily hot water needs of households but also be applied in commercial places such as hotels and office buildings to provide hot water or heating. Here is a detailed introduction about it:
Common types

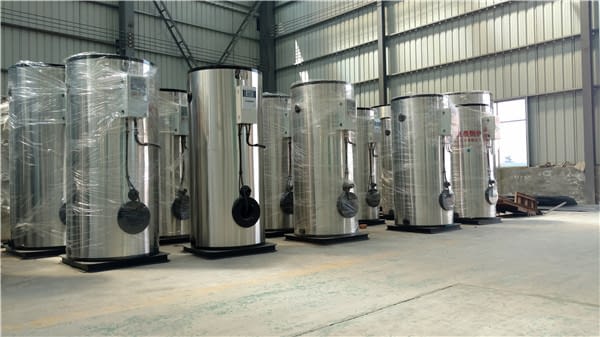

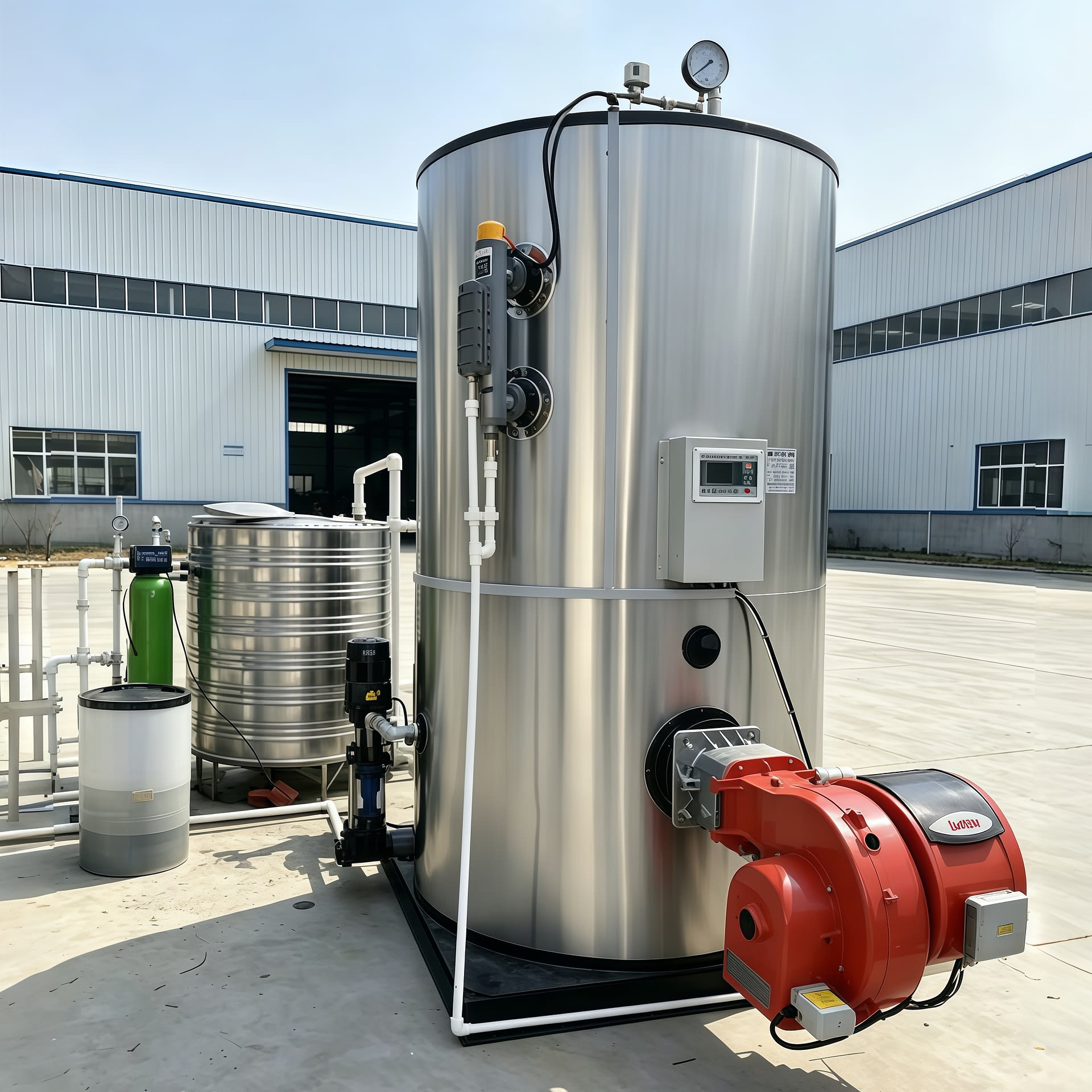

Gas-fired hot water boilers: With mature technology, a wide range of thermal power, using natural gas, liquefied gas and other fuels, they have high combustion efficiency and relatively low pollution. They are currently the most widely used type.

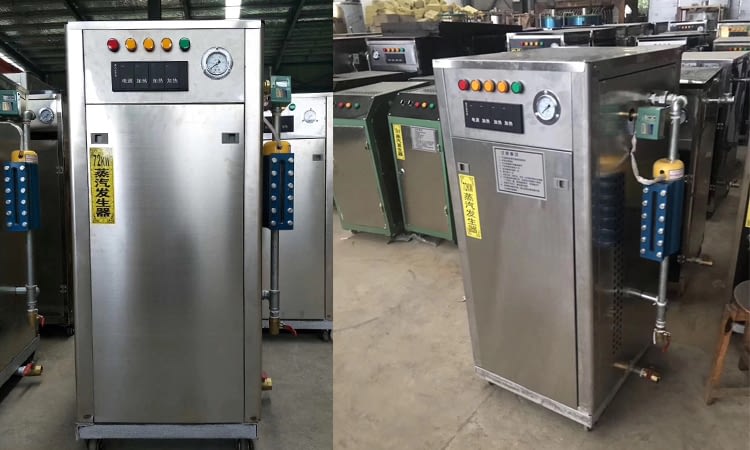

Electric hot water boilers: They feature quick start-up, flexible adjustment and zero emissions, making them suitable for situations with abundant power supply. However, their operating costs are relatively high.
Fuel oil hot water boiler: It uses fuel oil as fuel, has a relatively high thermal efficiency, and can provide a large thermal power. However, the storage and use of fuel oil require certain safety measures and cause certain pollution to the environment.
Biomass hot water boilers: They use biomass, wood and other energy sources as fuel. Their prices are much lower than those of electricity, natural gas and diesel. They are very cost-effective for long-term use. However, they require a dedicated storage room and take up a large area.

Performance characteristics
High thermal efficiency: The thermal efficiency can reach over 95%, effectively saving fuel costs.
High level of automation control: Modern dual-purpose hot water boilers are generally equipped with intelligent control systems, which can precisely adjust the combustion or heating power according to actual needs, achieving on-demand heating and facilitating operation and monitoring.
The safety protection devices are complete: usually equipped with over-temperature protection, over-pressure protection, flameout protection, water shortage protection and other devices to ensure safe and reliable operation.
Stable hot water production rate: The hot water production rate varies among different models of boilers, and can be selected based on actual water usage requirements.

Key points for selection
Clarify the requirements: It is necessary to consider the purpose of the hot water, the required temperature, the water consumption during peak hours, and the energy supply conditions of the usage site, etc., to initially screen the type of boiler and determine the appropriate power.
Consider performance indicators: Pay attention to thermal power and output capacity, heating speed and response time, level of automation control, materials and processes, etc., to ensure that the boiler can meet the usage requirements and operate stably for a long time.
Pay attention to energy efficiency: In addition to thermal efficiency, it is also necessary to examine partial load efficiency and system integration efficiency, and select energy-efficient products to reduce long-term operating costs.
Ensure safety and reliability: Confirm that the design and manufacture of the boiler comply with relevant standards, have strict quality inspection procedures and complete safety protection devices, and at the same time, the manufacturer or supplier can provide reliable installation guidance and after-sales service.
