LHG Biomass Steam Generator

1.What Is Biomass Steam Generator?

“Biomass steam boiler ”also can be called “Biomass steam generator”, refers to the boilers and plants powered by fuels of organic origin, according to the structure,it can be classified into single drum fire tube steam generator (Rated steam capacity 100-300kg/hr),and doube drum fire tube steam generator(Rated steam capacity 400kg-600kg/hr).100kg biomass steam generator as the smallest model in all boilers, it’s very welcomed by the market as the lower price and small steam capacity.

100kg-300kg Biomass Steam Generator —Fire Tube Single Drum Design

100kg biomass steam generator

400kg-600kg Biomass Steam Generator —Fire Tube Double Drum Design

biomass pellet steam generator

2. Advantage Of Bioamss Steam Generator

biomass steam generators are very welcomed by the market, itself  has a lot of attractived characteristics.

  • Steam capacity with 100-1000kg/hour, easy for choosing suitbale model.
  • Pressure with 0-7 bar,it is adjustable.
  • LCD full-automatically intelligent electronic control system.
  • Automatic feeding water.
  • Automatic feeding fuel.
  • Automatic alarm when the low water and overpressure.
  • Double safety valve, more secure.
  • Steam generated within 5 minutes
  • Compared with the traditional steam boiler, 10% fuel is saved.
  • Easy installation and fool-style operation.

3.How To Choose The Fuel Of Biomass Steam Generator?

Biomass fuels are organic materials produced in a renewable manner. It include a lot of types, such as woody fuels,forestry residues,mill residues,agricultural residuesect. wood wastes of all types make excellent biomass fuels.The following wood fuel can be as the better choice for the steam generators and boilers.

biomass wod pellet

  • Sawdust pellet
  • Walnut pellet
  • Straw pellet
  • Rice husk pellet
  • Peanut shell pellet
  • Corncob pellet
  • Other biomass pellet



4.Technical Data Of  Biomass Steam Generator

Boiler ModelXD0.1-0.7-MXD0.2-0.7-MXD0.3-0.7-M
Rated Rated Capacity100kg/hour200kg/hour300kg/hour
Heat Output72kw144kw216kw
Rated Steam Presure0.7mpa / 7 bar0.7mpa / 7 bar0.7mpa / 7 bar
Rated Steam Temperature174 ℃174 ℃174 ℃
Heat Up TimeIn 5 mintus In 5 mintus In 5 mintus
Power Supply 220v/ 50 hz ( or customized)220v/ 50 hz ( or customized)220v/ 50 hz ( or customized)
Power Supply Value1.5kw1.8kw3kw
Fule Storage Capacity 110kg120kg140kg
Fuel Consumption12-19kg/hour20-28kg/hour26-33kg/hour
Steam outlet DiameterDN20DN25DN25
Safety Valve DiameterDN20DN20*2DN20*2
Discharge valve DiameterDN25 / DN15DN25 / DN15DN25 / DN15
Chimney DiameterD114mmD180mmD180mm
Efficiencymore than 90%more than 90%more than 90%
Shipping Weight650kg850kg950kg
Shipping Size1500*700*1750mm1700*850*1850mm1800*900*2100



Boiler ModelXD0.4-0.7-MXD0.5-0.7-MXD0.6-0.7-M
Rated Rated Capacity400kg/hour500kg/hour600kg/hour
Heat Output72kw144kw216kw
Rated Steam Presure0.7mpa / 7 bar0.7mpa / 7 bar0.7mpa / 7 bar
Rated Steam Temperature174 ℃174 ℃174 ℃
Heat Up TimeIn 5 mintus In 5 mintus In 5 mintus
Power Supply 220v/ 50 hz ( or customized)220v/ 50 hz ( or customized)220v/ 50 hz ( or customized)
Power Supply Value3.58kw5.2kw6kw
Fule Storage Capacity 180kg180kg220kg
Fuel Consumption33-66kg/hour35-70kg/hour42-84kg/hour
Steam outlet DiameterDN25*2DN25*2DN25*2
Safety Valve DiameterDN20*4DN20*4DN20*4
Discharge valve DiameterDN25*2DN25*2DN25*2
Chimney DiameterD114mmD180mmD180mm
Efficiencymore than 90%more than 90%more than 90%
Shipping Weight1700kg1900kg2100kg
Shipping Size2400*850*1900mm2500*900*1900mm2700*900*2100mm

5.Application Field Of Biomass Steam Generator

Biomass steam generator widely used for agro industries,chemical and petrochemical industry ,food and feverages  industy,laundry and dry cleaning industy,concrete blocks curing industry ect.

steam generatror usage

steam generator usage

by XINDA XINDA

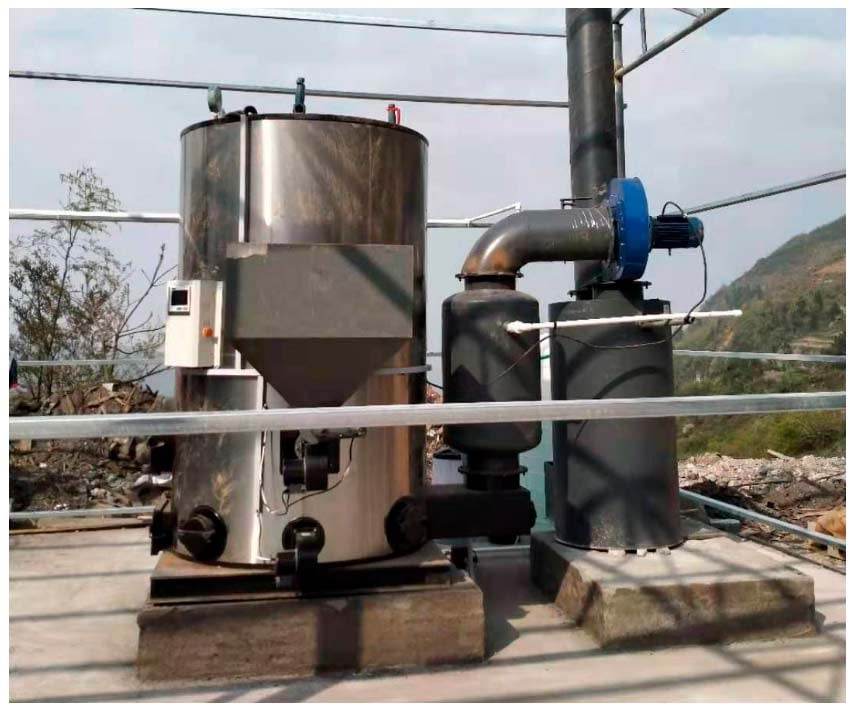

Biomass Steam Generator Vertical Wood Pellet Steam Boiler Industrial Use

Biomass Steam Generator Vertical Wood Pellet Steam Boiler Industrial Use

  • This type Machine have high thermal efficiency, up to the national standard; One-key operation, automatic operation;Quality control to ensure product quality;Save time and effort without installation; Low operating cost, microcomputer control, sound and light alarm;Multiple protection, safe operation.

Wood Steam Generator

1. Model: LSG

2. Rated evaporation: 100kg, 200kg, 300kg, 400kg, 500kg, 600kg, 700kg, 1000kg

3. Design pressure: 0.7Mpa

4. Stem temperature: 170℃

5. Design fuel: 6-10mm Biomass Pellet

6. Application: Clothing industry (ironing clothes), restaurants (steamed buns, steamed buns, steamed rice noodles, steamed bread, pastry)
Catering industry (restaurants, factory canteen, restaurants), processing of soybean products (boiled soybean milk, boiled rice paste, processing of various soybean products)
Liquor industry (steamed grain, distillation), indoor heating (indoor heating, heating, humidification), etc.

  • Biomass Steam Generator details:

  • Xinda Factory:

Xinda is one of the largest professional manufacturers, importers and exporters of indust ry boiler, and other pressure containers from Henan, China. We providing coal-fired boiler, oil/gas-fired boiler, steam boiler, hot water boiler, and other pressure containers.

“Honesty, service first” is the xinda boiler as the highest purpose, we are always adhering to the “personal, intimate, all-round” value of the service concept, to provide pre-sale, sale and after-sale one-stop integrated service solution, to create maximum value for customers.

Biomass Steam Generator

Biomass Steam Generator Pictures

  • Our after-sales service: the warranty period of the Wood steam generator is one year (other irresistible factors or man-made product damage is not within the warranty scope), our company’s service personnel to the user free training of the operation and maintenance technology of the machine, the manufacturer’s professional maintenance, timely and effective guarantee maintenance service.Strive for customer satisfaction, only the success of our customers have our development.
