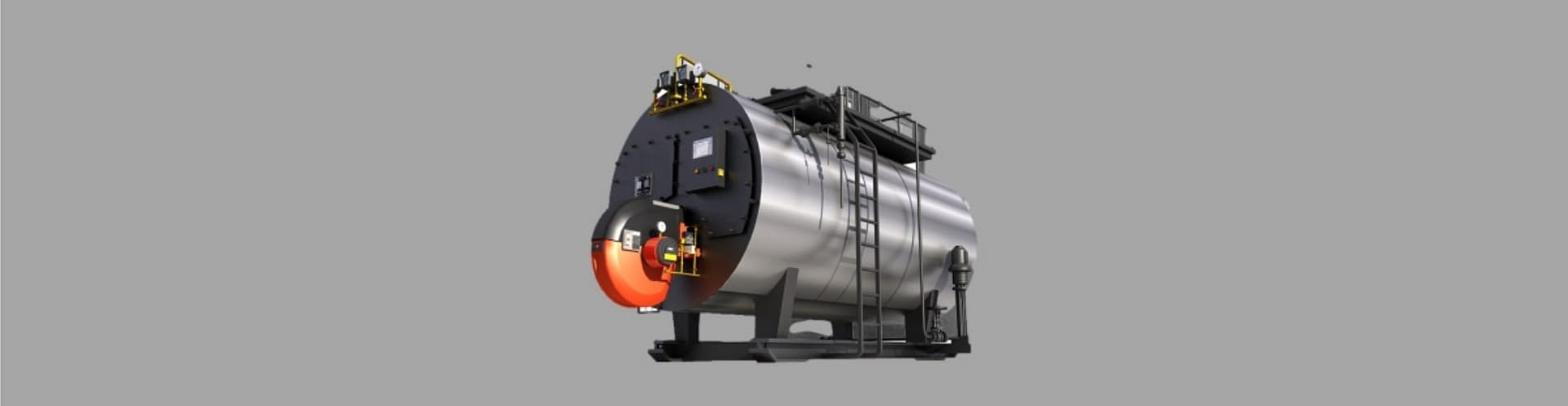

Gas / Oil Steam Boiler

1.Features Of Gas / OIl Fired Steam Boiler

It uses the most mature three-pass all wet back structure in the world. which safe and reliable. The use of waveform furnace can strengthen disturbance of smoke, increasing the heat transfer area of radiation, which can not only enhance the heat transfer effect, and also promote oil combustion in the furnace, the entire heating surface is in symmetrical arrangement with strong structure and reasonable system of water cycle. The water capacity in steam drum is large, with large steam room and quality steam and small fluctuations of water level in running. The unique setting of hearth and scouring way of smoke surface reduce the boiler heat loss to be minimal.

2. Technical Data

Boiler ModelWNS0.5WNS1WNS2WNS3WNS4WNS6
Rated Steam Capacity (kg/H)50010002000300040006000
Rated Steam Pressure (Mpa)0.7 / 1.0 / 1.25 / 1.6
Rated  Steam Temperature(℃)174 / 184 / 194 /204
Thermal Efficiency(%)>98
Main Steam Valve DiameterDN40DN65DN80DN80DN100DN125
Safety Valve DiameterDN40DN50DN40*2DN40*2DN50*2DN40/80
Infall DiameterDN25DN25DN40DN40DN40DN40
Sewage Valve DiameterDN40DN40DN50DN50DN50DN50
Chimney DiameterDN250DN300DN400DN450DN500DN650
Fuel ConsumptionLight Diesel Oil (kg/h)3570140210260390
Natural Gas(Nm³/h)4080160240280420
Liquefied Gas (Nm³/h)15306090120180
Pipeline Gas (Nm³/h)851703405106801020
Weight (T)3.34.67.19.21119.2
Size (mm)


L295041004600500056006650
W136017201900202021502630
H165020002200238026403140
by XINDA XINDA 2 Comments

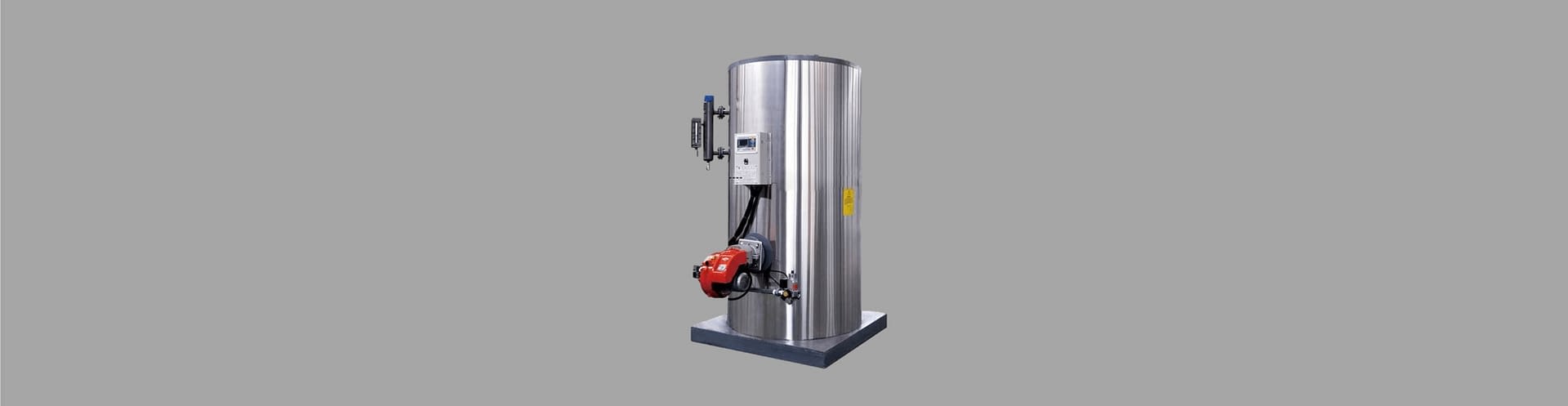

Stainless Steel 50-1000KG Gas/Oil Steam Generator

1.Characteristics Of 50-1000KG Gas/Oil Steam Generator

  • The liquid crystal display screen makes the boiler running status clear, and users can control it at any time.
  • The Steam Generator uses a foreign-imported burner to make the operation more stable, low noise, and more energy-saving combustion.
  • The boiler uses well-known brand high temperature resistant water pump, compact structure, high mechanical strength and stable performance.
  • Xinda Boiler has multiple protection systems: overpressure protection, safety valve overpressure protection, water shortage protection, leakage protection, overheat protection, burner flameout protection, etc.

2.Parts Introduction Of 50-1000KG Gas/Oil Steam Generator

  • Pressure controller: double pressure protection, automatic shutdown when pressure is reached, and automatic exhaust when overpressure.
  • Spring-loaded safety valve: high sensitivity, automatic pressure relief when overpressure, prevent explosion accident caused by excessive pressure of the boiler, and protect the safe operation of the boiler.
  • High-quality water pump: All-copper core high-quality water pump, durable quality is guaranteed, you can use it more assured.
  • Electrical part: Safe circuit design, safer and more stable in use.
  • Control panel: microcomputer one-button operation, real-time display of water level pressure, simple and clear.

3.Technical Data of 50-1000KG Gas/Oil Steam Generator

Type
LSS0.05-0.4/0.7-Y/Q
LSS0.1-0.4/0.7-Y/Q
LSS0.2-0.4/0.7-Y/Q
LSS0.3-0.4/0.7-Y/Q
LSS0.5-0.4/0.7-Y/Q
LSS1.0-0.4/0.7-Y/Q
Rated Evaporation Capacity(kg/h)
50
100
200
300
500
1000
Rated Pressure(MPa)
0.4/0.7
Steam Temperature(℃)
151/171
Fuel consumption
Diesel oil(kg/h)
3.2
6.4
12.8
19.2
31.8
63.6
Coal gas(Nm3/h)
8.9
17.7
35.5
53.2
88.7
177.4
Natural gas(Nm3/h)
4.0
7.9
15.7
24.8
39.7
79.3
Liquefied gas(kg/h)
3.3
6.5
13
19.5
33
66
Size(mm)
600*1300
780*1530
860*2100
980*2380
1050*2420
1440*2990
Weight(kg)
500
600
700
800
1300
2500

4.Application of 50-1000KG Gas/Oil Steam Generator

XINDA Gas/Oil Steam Generator Application:

  • Clothing washing and ironing industry: dry cleaners, dryers, washers, dehydrators, ironing machines, irons and other equipment supporting the use.
  • Food machinery industry: tofu machine, steam box, sterilization tank, packaging machine, coating equipment, sealing machine and other equipment supporting the use.
  • Packaging machinery industry: labeling machine, label machine supporting the use.
  • Biological chemical industry: fermentation tank, reaction kettle, sandwich pot, blender, emulsifier and other equipment supporting the use.
  • Other industries :(oil field, automobile) steam cleaning industry, (hotel, dormitory, school, mixing plant) hot water supply, (bridge, railway) concrete maintenance, (leisure and beauty club) sauna bath, heat exchange equipment, etc.
by XINDA XINDA No Comments

Gas/ Oil Fired Steam Boiler

1.Features Of Gas / OIl Fired Steam Boiler

It uses the most mature three-pass all wet back structure in the world. which safe and reliable. The use of waveform furnace can strengthen disturbance of smoke, increasing the heat transfer area of radiation, which can not only enhance the heat transfer effect, and also promote oil combustion in the furnace, the entire heating surface is in symmetrical arrangement with strong structure and reasonable system of water cycle. The water capacity in steam drum is large, with large steam room and quality steam and small fluctuations of water level in running. The unique setting of hearth and scouring way of smoke surface reduce the boiler heat loss to be minimal.

Oil Gas Steam Boiler

  • Sweeping function after preset can improve working conditions of burner and extend its service life.
  • The unique design of the large burning chamber can increase the radiation of hearth heating area and reduce the volume of the boiler and NOx emissions.
  • Smoke pipes box around boiler uses multi-level sealing approaches, which is easy for maintenance of the smoke box.
  • Horizontal stricture has area ample heated and adequate heat transfer, the boiler is stable in running when load changes, and combustion efficiency is high. Furnace pipe is arranged low with a large range of water level safety. Steam evaporation surface is large, with high quality steam.
  • It is equipped with advanced touch screen controller, digital prosecution system to achieve automatic control of boiler operation, with a variety of alarm interlock devices to ensure efficient, safe, reliable operation of the boiler.

2. Technical Data Of  Gas / Oil Fired Steam Boiler

6 ton gas / oil fired steam boiler include the light diesel oil boiler, natural gas boiler,liqufied gas boiler (LPG boiler),pipeline gas boiler, LNG boiler ect, the followings are details data about 6 ton boiler.

Boiler ModelWNS0.5WNS1WNS2WNS3WNS4WNS6
Rated Steam Capacity (kg/H)50010002000300040006000
Rated Steam Pressure (Mpa)0.7 / 1.0 / 1.25 / 1.6
Rated  Steam Temperature(℃)174 / 184 / 194 /204
Thermal Efficiency(%)>98
Main Steam Valve DiameterDN40DN65DN80DN80DN100DN125
Safety Valve DiameterDN40DN50DN40*2DN40*2DN50*2DN40/80
Infall DiameterDN25DN25DN40DN40DN40DN40
Sewage Valve DiameterDN40DN40DN50DN50DN50DN50
Chimney DiameterDN250DN300DN400DN450DN500DN650
Fuel ConsumptionLight Diesel Oil (kg/h)3570140210260390
Natural Gas(Nm³/h)4080160240280420
Liquefied Gas (Nm³/h)15306090120180
Pipeline Gas (Nm³/h)851703405106801020
Weight (T)3.34.67.19.21119.2
Size (mm)


L380045004800550063107200
W190025002900290029503290
H210026803250388031203610

3. Boiler Installation Flow Chart

xinda boiler factory will offer customers installation service all the world.

oil gas boiler installation

4. Installation & Delivery Pictures Of Oil / Gas Fired Boiler

xinda boiler have been sent to more than 50 countries and areas, it has good reputation in China and abroad.

by XINDA XINDA No Comments

60-1400kw Oil/Gas Fired Hot Water Boiler

1.Characteristics Of 60-1400kw Oil/Gas Fired Hot Water Boiler

  • Separate the heating and clean warm water efficiently,fire two series.The warm water is galvanized,which can meet the strict requirement of the clean water.
  • Vertical fire tube,the mist travels two strikes,the thermal efficiency up to 90%.
  • XINDA boiler adopts microcomputer control system, the boiler has the function of feed water automatically,temperature setting,combustion start and stop automatically,circulating control and time setting,which make the boiler working safely.

2.Technical Data Of 60-1400kw Oil/Gas Fired Hot Water Boiler

Item\ModelVertical Fire Tube Oil/Gas Fired Hot Water Boiler
Rated heat capacity (kw) 60 80 120 180 230 350
Rated heat power  (Kcal/h) 520 728 1040 1560 2080 3120
Rated working pressure (MPa)0
Supply/return water temperature (℃)85/60
Design heat efficiency (%)>=90
Feed water diameter (DN) 40 5065
Fuel consumptionDiesel (kg/h)4.86.39.514.318.227.7
Natural gas (Nm³/h)5.77.611.417.021.833.1
LPG (Nm³/h)2.12.84.26.38.012.2
Boiler Size (mm)700*800*1350800*900*1600800*900*17001100*1000*18001100*1000*19801300*1400*2140
Transportation weight (kg)220260320480500800



Item\ModelVertical Fire Tube Oil/Gas Fired Hot Water Boilers
Rated heat capacity (kw)47058070010501400
Rated heat power  (Kcal/h)416052006240936012480
Rated working pressure (MPa)0
Supply/return water temperature (℃)85/60
Design heat efficiency (%)>=90
Feed water diameter (DN)65801006565
Fuel consumptionDiesel (kg/h)37.245.955.483.1110.9
Natural gas (Nm³/h)44.554.966.399.4132.6
LPG (Nm³/h)16.420.224.436.548.7
Boiler Size (mm)1200*1150*22801450*1400*22701400*1400*26001600*1600*27001720*1720*3060
Transportation weight (kg)9101400170027003500

3.Application Of 60-1400kw Oil/Gas Fired Hot Water Boiler

XINDA Oil/Gas Fired Hot Water Boiler Application: Food industry, Biological equipment industry, Chemical industry, Garment industry, Ironing washing, Packaging industry, Concrete conservation , Pharmaceutical industry, Cleaning, Bath Heating,Greenhouse Farming,Leisure Industry,Service Industry, Textile Industry,Food service Industry, etc..
