15 ton Coal Fired Steam Boiler In Russia Paper Factory

15 ton Coal Fired Steam Boiler Used in Russia Paper Factory

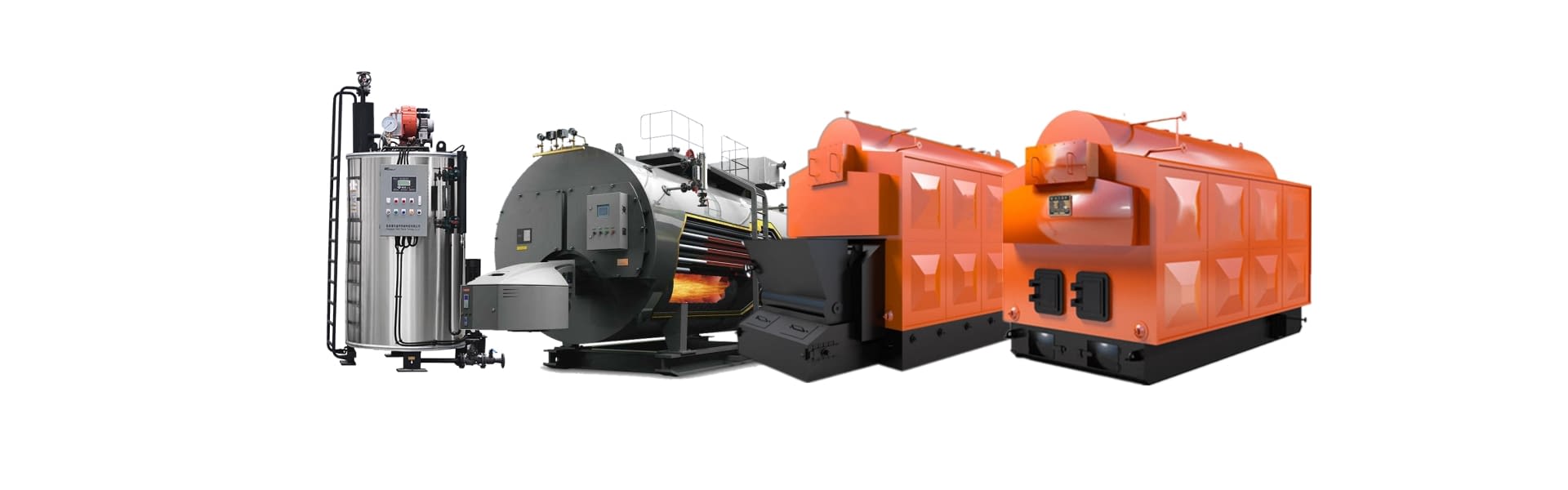

According to the boiler fuel, the boiler can be classified into coal boiler, biomass boiler, oil boiler, gas boiler and electric boiler.

According to the boiler structure , the boiler can be divided into single drum boiler and double drum boiler. in our factory, more then 10 ton steam capacity, the boiler will be adopted the double drum structure. 15 ton coal fired steam boiler is double drum boiler.

15 Ton coal fired steam boiler which is used for papaer industry in Russia, that factory has more then 30 years experience on paper industy in Russia, after visiting and knowing a lot China boiler factories, finally they choosed xinda boiler to cooperate.

After 45 days Production process, 15 ton coal fired steam boiler was sent to Russia, at the same time, xinda boiler factory sent to 2 engineers and 5 workers to paper factory and help them installation and running the boiler. after 20 days boiler installation period, the boiler began running well. xinda boiler produced 15 ton coal fired steam boiler got the recognition from Russia customers, they promised that will introduce more Russia customers to Xinda boiler.

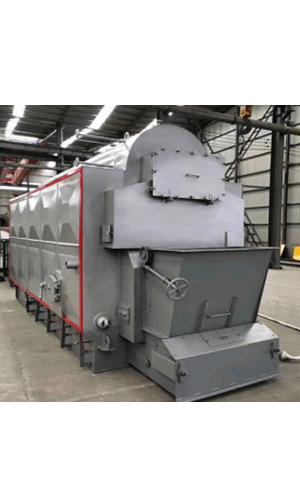

15 Ton Coal fired Steam Boiler Installation Picture

15 ton coal boiler

If you want to know more about China boilers or 15 ton coal fired steam boiler, welcome you contact us feel free.

Xinxiang Xinda Boiler Co., Ltd.

Web: www.xdsteamgenerator.com

Tel/Whatsapp/Wechat:+8613101737863

E-mail: [email protected]



by XINDA XINDA

2000kg Gas / Oil Fired Steam Boiler

1.Features Of Gas / OIl Fired Steam Boiler

It uses the most mature three-pass all wet back structure in the world. which safe and reliable. The use of waveform furnace can strengthen disturbance of smoke, increasing the heat transfer area of radiation, which can not only enhance the heat transfer effect, and also promote oil combustion in the furnace, the entire heating surface is in symmetrical arrangement with strong structure and reasonable system of water cycle. The water capacity in steam drum is large, with large steam room and quality steam and small fluctuations of water level in running. The unique setting of hearth and scouring way of smoke surface reduce the boiler heat loss to be minimal.Oil Gas Steam Boiler

  • Sweeping function after preset can improve working conditions of burner and extend its service life.
  • The unique design of the large burning chamber can increase the radiation of hearth heating area and reduce the volume of the boiler and NOx emissions.
  • Smoke pipes box around boiler uses multi-level sealing approaches, which is easy for maintenance of the smoke box.
  • Horizontal stricture has area ample heated and adequate heat transfer, the boiler is stable in running when load changes, and combustion efficiency is high. Furnace pipe is arranged low with a large range of water level safety. Steam evaporation surface is large, with high quality steam.
  • It is equipped with advanced touch screen controller, digital prosecution system to achieve automatic control of boiler operation, with a variety of alarm interlock devices to ensure efficient, safe, reliable operation of the boiler.

boiler producti

2. Technical Data Of  2000kg Gas / Oil Fired Steam Boiler

2 ton gas / oil fired steam boiler include the light diesel oil boiler, natural gas boiler,liqufied gas boiler (LPG boiler),pipeline gas boiler, LNG boiler ect, the followings are details data about 2 ton boiler.

Boiler ModelWNS2
Rated Steam Capacity (kg/H)2000
Rated Steam Pressure (Mpa)0.7 / 1.0 / 1.25 / 1.6
Rated  Steam Temperature(℃)174 / 184 / 194 /204
Thermal Efficiency(%)>98
Main Steam Valve Diameter80
Safety Valve Diameter40*2
Infall Diameter40
Sewage Valve Diameter50
Chimney Diameter400
Fuel ConsumptionLight Diesel Oil (kg/h)140
Natural Gas(Nm³/h)160
Liquefied Gas (Nm³/h)60
Pipeline Gas (Nm³/h)340
Weight (T)7.1
Size (mm)(L*W*H)3926*1990*2257

3.Boiler Auxilaries

Xinda boiler still offer cusomers high-level boilers and boiler anxilaries,we also support customized service.

boiler auxilaries

4. Boiler Installation Flow Chart

xinda boiler factory will offer customers installation service all the world. Boiler Installation flow chart

5. Installation & Delivery Pictures Of Oil / Gas Fired Boiler

xinda boiler have been sent to more than 50 countries and areas, it has good reputation in China and abroad.

6. After Sales Service

Xinda boiler as the one of the leader of China boilers, we all workers will still try the best to offer customers’ best service.

by XINDA XINDA

600kg Biomass Steam Generator

1. Characteristics of 600kg Biomass Steam Generator

600kg biomass steam generator consists of 2 set2 300kg steam generators, the two steam generator can be used at the same time or used alone.

  • Double drum fire tube structure, easy for maintance and controling steam capacity
  • Doube safety valve, double security
  • Lower water alarm
  • Overpressure alarm
  • Automatic feeding fuel
  • Auotmatic feeding water
  • Easy and fast installation
  • Fool-style operation

2. Details of 600kg Biomass Steam Generator

600kg biomass steam generator

3. Technical Data of 600kg Biomass Steam Generator

China xinda boiler factory also produced 100kg steam boiler, 200kg steam boiler, 300kg steam boiler, 400kg steam boiler, 500kg steam boiler ect.

Boiler ModelXD0.6-0.7-M
Rated Rated Capacity600kg/hour
Heat Output420kw
Rated Steam Presure0.7 mpa / 7 bar
Rated Steam Temperature174 ℃
Heat Up Timein 5 mintus
Power Supply220v/ 50 hz ( or customized)
Power Supply Value5.3kw
Fule Storage Capacity180kg
Fuel Consumption35-70kg/hour
Steam outlet DiameterDN25*2
Safety Valve DiameterDN20*4
Discharge valve DiameterDN25 *2
Chimney DiameterD180mm
Efficiencymore than 90%
Shipping Weight1900kg
Shipping Size2500*900*1900mm

4. Fuel Option of Biomass Steam Generator

Biomass fuels are organic materials produced in a renewable manner. It include a lot of types, wood wastes of all types make excellent biomass fuels. xinda boiler factory also advise you to use the better quality wood pellet, it will be convinent for maintance and environment protection. wood pellet steam boiler and rice husk steam boiler are sales very hot in China boiler market.

The biomass pellet types as follow:

biomass wod pellet

  • Peanut shell pellet
  • Walnut pellet
  • Straw pellet
  • Rice husk pellet
  • Corncob pellet
  • Saw dust pellet
  • Other biomass pellet

5.Application Field Of Bioamss Steam Generator

They are widely used for agro industries,chemical and petrochemical industry ,food and feverages industy,laundry and dry cleaning industy,concrete blocks curing industry, hospital and school ect. the biggest advantage of xinda boiler is the heat time only in 5 minutes, save cost and save time.

steam generator application

steam generator usage

7. Stock Picture of Biomass Steam Generator

by XINDA XINDA

300kg Biomass Steam Generator

1.  Introduction of  Biomass Steam Generator

Biomass steam generator also can be called biomass steam boiler, it mainly used for supplying heat and steam. biomass steam generator with higher efficiency,  heat up only within 5 minutes. common biomass boilers on the market include wood pellet steam generator, rice husk steam generator,wood steam generator, peaunt steam generator ect.  300kg biomass steam generator as the biggest single drum steam generaor in xinda boiler factory, it also sales hot in the market.

100kg biomass steam generator

2. Characteristics of Biomass Steam Generator

300kg biomass steam generator with high efficieny and save manpower, while it also has more advantages about xinda steam generator.

  • LCD full-automatically intelligent electronic control system
  • Fire tube design, easy for maintaince
  • Double safety valve, more secure
  • Lower water alarm
  • Overpressure alarm
  • Automatic feeding fuel
  • Auotmatic feeding water
  • Easy and fast installation
  • Fool-style operation

3. Fuel Option of Biomass Steam Generator

Biomass fuels are organic materials produced in a renewable manner. It include a lot of types, wood wastes of all types make excellent biomass fuels, so rick husk steam generator, wood steam generator, wood pellet steam generator are very hot too.

The biomass pellet types as follow:

biomass wod pellet

  • Sawdust pellet
  • Peanut shell pellet
  • Walnut pellet
  • Straw pellet
  • Rice husk pellet
  • Corncob pellet
  • Other biomass pellet



4. Technical Data of 300kg Biomass Steam Generator

Boiler ModelXD0.3-0.7-M
Rated Rated Capacity300kg/hour
Heat Output216kw
Rated Steam Presure0,7mpa / 7 bar
Rated Steam Temperature174 ℃
Heat Up Timein 5 mintus
Power Supply 220v/ 50 hz ( or customized)
Power Supply Value2kw
Fule Storage Capacity 140kg
Fuel Consumption38-42kg/hour
Steam outlet DiameterDN25
Safety Valve DiameterDN20
Discharge valve DiameterDN25 / DN15
Chimney DiameterD219mm
Efficiencymore than 90%
Shipping Weight980kg
Shipping Size1800*900*2100mm

5.Application Field Of Bioamss Steam Generator

They are widely used for agro industries,chemical and petrochemical industry ,food and feverages industy,laundry and dry cleaning industy,concrete blocks curing industry, hospital and school ect.

steam generator application

steam generator application

by XINDA XINDA No Comments

500kg Gas / Oil Fired Steam Boiler

1.Features of Gas / OIl Fired Steam Boiler

It uses the most mature three-pass all wet back structure in the world. which safe and reliable. The use of waveform furnace can strengthen disturbance of smoke, increasing the heat transfer area of radiation, which can not only enhance the heat transfer effect, and also promote oil combustion in the furnace, the entire heating surface is in symmetrical arrangement with strong structure and reasonable system of water cycle. The water capacity in steam drum is large, with large steam room and quality steam and small fluctuations of water level in running. The unique setting of hearth and scouring way of smoke surface reduce the boiler heat loss to be minimal.Oil Gas Steam Boiler

  • Sweeping function after preset can improve working conditions of burner and extend its service life.
  • The unique design of the large burning chamber can increase the radiation of hearth heating area and reduce the volume of the boiler and NOx emissions.
  • Smoke pipes box around boiler uses multi-level sealing approaches, which is easy for maintenance of the smoke box.
  • Horizontal stricture has area ample heated and adequate heat transfer, the boiler is stable in running when load changes, and combustion efficiency is high. Furnace pipe is arranged low with a large range of water level safety. Steam evaporation surface is large, with high quality steam.
  • It is equipped with advanced touch screen controller, digital prosecution system to achieve automatic control of boiler operation, with a variety of alarm interlock devices to ensure efficient, safe, reliable operation of the boiler.

boiler producti

2. Technical Data of  500kg Gas / Oil Fired Steam Boiler

0.5 ton gas / oil fired steam boiler include the light diesel oil boiler, natural gas boiler,liqufied gas boiler (LPG boiler),pipeline gas boiler, LNG boiler ect, the followings are details data about 0.5 ton boiler.

Boiler ModelWNS0.5
Rated Steam Capacity (kg/H)500
Rated Steam Pressure (Mpa)0.7 / 1.0 / 1.25 / 1.6
Rated  Steam Temperature(℃)174 / 184 / 194 /204
Thermal Efficiency(%)>98
Main Steam Valve Diameter40
Safety Valve Diameter40
Infall Diameter25
Sewage Valve Diameter40
Chimney Diameter250
Fuel ConsumptionLight Diesel Oil (kg/h)35
Natural Gas(Nm³/h)40
Liquefied Gas (Nm³/h)15
Pipeline Gas (Nm³/h)85
Weight (T)3.9
Size (mm)(L*W*H)3432*1900*1800

3.Boiler Auxilaries

Xinda boiler still offer cusomers high-level boilers and boiler anxilaries,we also support customized service.

boiler auxilaries

4. Boiler Installation Flow Chart

China xinda boiler factory will offer customers installation service all over the world.Boiler Installation flow chart

5. Installation & Delivery Pictures Of Oil / Gas Fired Boiler

xinda boiler have been sent to more than 50 countries and areas, this horizontal type oil gas boiler enjoy  good reputation in China and abroad.

6. After Sales Service

Xinda boiler all workers will still try the best to offer customers’ best service.

by XINDA XINDA No Comments

4000kg/hour Natural Gas Steam Boiler in Chile Beer Factory

4000kg/hour Natural Gas Steam Boiler in Chile Beer Factory

natural gas steam boiler

natural gas steam boiler

Gas steam boiler and oil steam boiler are the same structure, just the burner is different, according to the different fuel, this type steam boiler include natural gas boiler, diesel boiler, LPG Boiler, LNG Boiler, light oil boiler,heavy oil boiler ect.

4000kg /hour steam boiler is WNS type boiler, this types boiler with high efficiency, save cost , fully automatic control and environment protection, it’s welcomed by food factory.Chile customers choosed the boiler used in beer factory.

After the Chile customers view the natural gas stam boiler production process, they immediately decided to order the boiler in our factory, let’s us bring you to view the boiler whole production process.

natural gas boiler

natural gas boiler

Xinxiang Xinda Boiler Co., Ltd. as China leading boiler factory, we have the responsibility for each customers in China and abroad, we will be responsible for each boiler for whole life. If you have any questions or doubts about the boilers, please contact us as follows.

Xinxiang Xinda Boiler Co., Ltd.

Web.: www. xdsteamgenerator.com

Tel/ Whatsapp/ Wechat:+8613101737863

E-mail: [email protected]

by XINDA XINDA No Comments

6 TPH Biomass Fired Steam Boiler Shipped to Morocco Food Factory

6 TPH Biomass Fired Steam Boiler Shipped to Morocco

Biomass as the boiler fuel, as the low cost,high calorific value, at the same time, environment protection, so this type boiler sales very hot in China and abroad.

The biomass fuel has a lot of types , include rice husk, wood pellet, peanut shell, coconut shell,straw ect.

Biomass steam boiler has the DZH type boiler and DZL Type boiler, for 6 ton steam boiler,most of cusotmers will choose the DZL type boiler, it’s fully automatic feeding and discharging, save manpower and running cost.

6 TPH biomass fired steam boiler shipped to Morocoo in last month, this boiler will be used in food factory. They mainly produce the suger products, it’s a new big factory in the local. we sent professional engineers to guided them installation and running, they are very satisfied with China xinda boiler.

dzl steam boiler

6 tph steam boiler

Xinxiang xinda boiler co., ltd. as a professional boiler manufacture in China, the products include coal boiler, biomass boiler, gas boiler, oil boiler, electric boiler. we also produce different capacity steam generators, if you are interested in us, pls don’t hesitate to contact with us.

Xinda boiler factory

xinda boiler factory

xinda boiler factory

Xinxiang Xinda Boiler Co., Ltd.

Web: www.xdsteamgenerator.com

Tel/Whatsapp/ Wechat:+8613101737863

E-mail: [email protected]



by XINDA XINDA

8000Kg Gas / Oil Fired Steam Boiler (WNS8 Steam Boiler)

1.Features Of Gas / OIl Fired Steam Boiler

It uses the most mature three-pass all wet back structure in the world. which safe and reliable. The use of waveform furnace can strengthen disturbance of smoke, increasing the heat transfer area of radiation, which can not only enhance the heat transfer effect, and also promote oil combustion in the furnace, the entire heating surface is in symmetrical arrangement with strong structure and reasonable system of water cycle. The water capacity in steam drum is large, with large steam room and quality steam and small fluctuations of water level in running. The unique setting of hearth and scouring way of smoke surface reduce the boiler heat loss to be minimal.

Oil Gas Steam Boiler

  • Sweeping function after preset can improve working conditions of burner and extend its service life.
  • The unique design of the large burning chamber can increase the radiation of hearth heating area and reduce the volume of the boiler and NOx emissions.
  • Smoke pipes box around boiler uses multi-level sealing approaches, which is easy for maintenance of the smoke box.
  • Horizontal stricture has area ample heated and adequate heat transfer, the boiler is stable in running when load changes, and combustion efficiency is high. Furnace pipe is arranged low with a large range of water level safety. Steam evaporation surface is large, with high quality steam.
  • It is equipped with advanced touch screen controller, digital prosecution system to achieve automatic control of boiler operation, with a variety of alarm interlock devices to ensure efficient, safe, reliable operation of the boiler.

boiler production process

2. Technical Data Of 8000kg Gas / Oil Fired Steam Boiler

8 ton gas / oil fired steam boiler include the light diesel oil boiler, natural gas boiler,liqufied gas boiler (LPG boiler),pipeline gas boiler, LNG boiler ect, the followings are details data about 8 ton boiler.

Boiler ModelWNS8
Rated Steam Capacity (kg/H)388000
Rated Steam Pressure (Mpa)0.7 / 1.0 / 1.25 / 1.6
Rated  Steam Temperature(℃)174 / 184 / 194 /204
Thermal Efficiency(%)>98
Main Steam Valve Diameter150
Safety Valve Diameter40/80
Infall Diameter65
Sewage Valve Diameter65
Chimney Diameter800
Fuel ConsumptionLight Diesel Oil (kg/h)520
Natural Gas(Nm³/h)560
Liquefied Gas (Nm³/h)240
Pipeline Gas (Nm³/h)1360
Weight (T)21.6
Size (mm)(L*W*H)7780*3440*3700

3.Boiler Auxilaries

Xinda boiler still offer cusomers high-level boilers and boiler anxilaries,we also support customized service.

boiler auxilaries

4. Boiler Installation Flow Chart

xinda boiler factory will offer customers installation service all the world.

oil gas boiler installation



5. Installation & Delivery Pictures Of Oil / Gas Fired Boiler

xinda boiler have been sent to more than 50 countries and areas, it has good reputation in China and abroad.

6. After Sales Service

Xinda boiler as the one of the leader of China boilers, we all workers will still try the best to offer customers’ best service.

by XINDA XINDA

1000kg Gas / Oil Fired Steam Boiler

1.Features of Gas / OIl Fired Steam Boiler

It uses the most mature three-pass all wet back structure in the world. which safe and reliable. The use of waveform furnace can strengthen disturbance of smoke, increasing the heat transfer area of radiation, which can not only enhance the heat transfer effect, and also promote oil combustion in the furnace, the entire heating surface is in symmetrical arrangement with strong structure and reasonable system of water cycle. The water capacity in steam drum is large, with large steam room and quality steam and small fluctuations of water level in running. The unique setting of hearth and scouring way of smoke surface reduce the boiler heat loss to be minimal.Oil Gas Steam Boiler

  • Sweeping function after preset can improve working conditions of burner and extend its service life.
  • The unique design of the large burning chamber can increase the radiation of hearth heating area and reduce the volume of the boiler and NOx emissions.
  • Smoke pipes box around boiler uses multi-level sealing approaches, which is easy for maintenance of the smoke box.
  • Horizontal stricture has area ample heated and adequate heat transfer, the boiler is stable in running when load changes, and combustion efficiency is high. Furnace pipe is arranged low with a large range of water level safety. Steam evaporation surface is large, with high quality steam.
  • It is equipped with advanced touch screen controller, digital prosecution system to achieve automatic control of boiler operation, with a variety of alarm interlock devices to ensure efficient, safe, reliable operation of the boiler.

boiler producti

2. Technical Data of  1000kg Gas / Oil Fired Steam Boiler

1 ton gas / oil fired steam boiler include the light diesel oil boiler, natural gas boiler,liqufied gas boiler (LPG boiler),pipeline gas boiler, LNG boiler ect, the followings are details data about 1 ton boiler.

Boiler ModelWNS1
Rated Steam Capacity (kg/H)1000
Rated Steam Pressure (Mpa)0.7 / 1.0 / 1.25 / 1.6
Rated  Steam Temperature(℃)174 / 184 / 194 /204
Thermal Efficiency(%)>98
Main Steam Valve Diameter65
Safety Valve Diameter50
Infall Diameter25
Sewage Valve Diameter40
Chimney Diameter300
Fuel ConsumptionLight Diesel Oil (kg/h)64
Natural Gas(Nm³/h)80
Liquefied Gas (Nm³/h)30
Pipeline Gas (Nm³/h)170
Weight (T)6
Size (mm)(L*W*H)3675*1800*1985

3.Boiler Auxilaries

Xinda boiler still offer cusomers high-level boilers and boiler anxilaries,we also support customized service.

boiler auxilaries

4. Boiler Installation Flow Chart

xinda boiler factory will offer customers installation service all the world. Boiler Installation flow chart

5. Installation & Delivery Pictures Of Oil / Gas Fired Boiler

xinda boiler have been sent to more than 50 countries and areas, it has good reputation in China and abroad.

6. After Sales Service

Xinda boiler all workers will still try the best to offer customers’ best service.



by XINDA XINDA

500kg Biomass Steam Generator

1. Characteristics of 500kg Biomass Steam Generator

500kg biomass steam generator consists of 1 set 200kg steam generators and 1 set 300kg steam generator. it can be used at the same time or used alone.

  • Double drum fire tube structure, easy for maintance and controling steam capacity
  • Doube safety valve, double security
  • Lower water alarm
  • Overpressure alarm
  • Automatic feeding fuel
  • Auotmatic feeding water
  • Easy and fast installation
  • Fool-style operation

2. Details of 500kg Biomass Steam Generator

500kg biomass steam generator

3. Fuel Option of Biomass Steam Generator

Biomass fuels are organic materials produced in a renewable manner. It include a lot of types, wood wastes of all types make excellent biomass fuels. xinda boiler factory also advise you used the better quality wood pellet, it will be convinent for maintance and environment protection.

The biomass pellet types as follow:

biomass wod pellet

  • Peanut shell pellet
  • Walnut pellet
  • Straw pellet
  • Rice husk pellet
  • Corncob pellet
  • Saw dust pellet
  • Other biomass pellet

4. Technical Data of 500kg Biomass Steam Generator

China xinda boiler factory also produced 100kg steam boiler, 200kg steam boiler, 300kg steam boiler, 500kg steam boiler, 600kg steam boiler ect.

Boiler ModelXD0.5-0.7-M
Rated Rated Capacity 500kg/hour
Heat Output350kw
Rated Steam Presure0.7 mpa / 7 bar
Rated Steam Temperature174 ℃
Heat Up Timein 5 mintus
Power Supply220v/ 50 hz ( or customized)
Power Supply Value 5.3kw
Fule Storage Capacity180kg
Fuel Consumption 35-70kg/hour
Steam outlet DiameterDN25*2
Safety Valve DiameterDN20*4
Discharge valve Diameter DN25 *2
Chimney DiameterD180mm
Efficiencymore than 90%
Shipping Weight 980kg
Shipping Size2500*900*1900mm

5.Application Field Of Bioamss Steam Generator

They are widely used for agro industries,chemical and petrochemical industry ,food and feverages industy,laundry and dry cleaning industy,concrete blocks curing industry, hospital and school ect. the biggest advantage of xinda boiler is the steam will come out only in 5 minutes, save cost and save time, they are very suitable for the small and medium-sized factory or new factory.

steam generator usage

steam generator application

6. Stock Picture of Biomass Steam Generator

steam generator stock
