Thailand 500kg biomass steam generator
Project location: Thailand
Purchase equipment: LHS
Application: Cannery

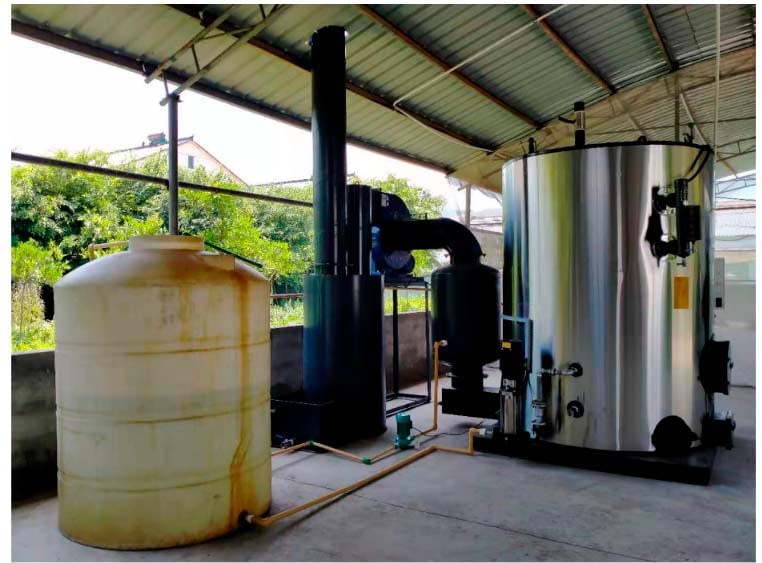

The boiler is used for canning, using a steam generator to produce high temperature and high pressure steam to cook the raw materials and sterilize the cans. The use of supporting cooking equipment, canning equipment and sterilization equipment to make the effect to a higher level. The customer purchased the steam generator and water softener together for use.
“Biomass steam boiler ”also can be called “Biomass steam generator”, refers to the boilers and plants powered by fuels of organic origin, according to the structure,it can be classified into single drum fire tube steam generator (Rated steam capacity 100-300kg/hr)，and doube drum fire tube steam generator（Rated steam capacity 400kg-600kg/hr).100kg biomass steam generator as the smallest model in all boilers, it’s very welcomed by the market as the lower price and small steam capacity.
biomass steam generators are very welcomed by the market, itself has a lot of attractived characteristics.
Biomass fuels are organic materials produced in a renewable manner. It include a lot of types, such as woody fuels,forestry residues,mill residues,agricultural residuesect. wood wastes of all types make excellent biomass fuels.The following wood fuel can be as the better choice for the steam generators and boilers.
| Boiler Model | XD0.1-0.7-M | XD0.2-0.7-M | XD0.3-0.7-M |
| Rated Rated Capacity | 100kg/hour | 200kg/hour | 300kg/hour |
| Heat Output | 72kw | 144kw | 216kw |
| Rated Steam Presure | 0.7mpa / 7 bar | 0.7mpa / 7 bar | 0.7mpa / 7 bar |
| Rated Steam Temperature | 174 ℃ | 174 ℃ | 174 ℃ |
| Heat Up Time | In 5 mintus | In 5 mintus | In 5 mintus |
| Power Supply | 220v/ 50 hz ( or customized) | 220v/ 50 hz ( or customized) | 220v/ 50 hz ( or customized) |
| Power Supply Value | 1.5kw | 1.8kw | 3kw |
| Fule Storage Capacity | 110kg | 120kg | 140kg |
| Fuel Consumption | 12-19kg/hour | 20-28kg/hour | 26-33kg/hour |
| Steam outlet Diameter | DN20 | DN25 | DN25 |
| Safety Valve Diameter | DN20 | DN20*2 | DN20*2 |
| Discharge valve Diameter | DN25 / DN15 | DN25 / DN15 | DN25 / DN15 |
| Chimney Diameter | D114mm | D180mm | D180mm |
| Efficiency | more than 90% | more than 90% | more than 90% |
| Shipping Weight | 650kg | 850kg | 950kg |
| Shipping Size | 1500*700*1750mm | 1700*850*1850mm | 1800*900*2100 |
| Boiler Model | XD0.4-0.7-M | XD0.5-0.7-M | XD0.6-0.7-M |
| Rated Rated Capacity | 400kg/hour | 500kg/hour | 600kg/hour |
| Heat Output | 72kw | 144kw | 216kw |
| Rated Steam Presure | 0.7mpa / 7 bar | 0.7mpa / 7 bar | 0.7mpa / 7 bar |
| Rated Steam Temperature | 174 ℃ | 174 ℃ | 174 ℃ |
| Heat Up Time | In 5 mintus | In 5 mintus | In 5 mintus |
| Power Supply | 220v/ 50 hz ( or customized) | 220v/ 50 hz ( or customized) | 220v/ 50 hz ( or customized) |
| Power Supply Value | 3.58kw | 5.2kw | 6kw |
| Fule Storage Capacity | 180kg | 180kg | 220kg |
| Fuel Consumption | 33-66kg/hour | 35-70kg/hour | 42-84kg/hour |
| Steam outlet Diameter | DN25*2 | DN25*2 | DN25*2 |
| Safety Valve Diameter | DN20*4 | DN20*4 | DN20*4 |
| Discharge valve Diameter | DN25*2 | DN25*2 | DN25*2 |
| Chimney Diameter | D114mm | D180mm | D180mm |
| Efficiency | more than 90% | more than 90% | more than 90% |
| Shipping Weight | 1700kg | 1900kg | 2100kg |
| Shipping Size | 2400*850*1900mm | 2500*900*1900mm | 2700*900*2100mm |
Biomass steam generator widely used for agro industries,chemical and petrochemical industry ,food and feverages industy,laundry and dry cleaning industy,concrete blocks curing industry ect.

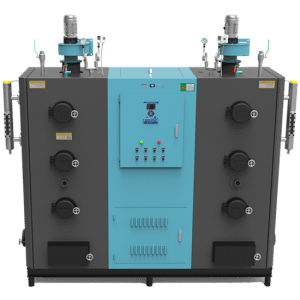

500kg biomass steam generator consists of 1 set 200kg steam generators and 1 set 300kg steam generator. it can be used at the same time or used alone.
Biomass fuels are organic materials produced in a renewable manner. It include a lot of types, wood wastes of all types make excellent biomass fuels. xinda boiler factory also advise you used the better quality wood pellet, it will be convinent for maintance and environment protection.
The biomass pellet types as follow:
China xinda boiler factory also produced 100kg steam boiler, 200kg steam boiler, 300kg steam boiler, 500kg steam boiler, 600kg steam boiler ect.
| Boiler Model | XD0.5-0.7-M |
| Rated Rated Capacity | 500kg/hour |
| Heat Output | 350kw |
| Rated Steam Presure | 0.7 mpa / 7 bar |
| Rated Steam Temperature | 174 ℃ |
| Heat Up Time | in 5 mintus |
| Power Supply | 220v/ 50 hz ( or customized) |
| Power Supply Value | 5.3kw |
| Fule Storage Capacity | 180kg |
| Fuel Consumption | 35-70kg/hour |
| Steam outlet Diameter | DN25*2 |
| Safety Valve Diameter | DN20*4 |
| Discharge valve Diameter | DN25 *2 |
| Chimney Diameter | D180mm |
| Efficiency | more than 90% |
| Shipping Weight | 980kg |
| Shipping Size | 2500*900*1900mm |
They are widely used for agro industries,chemical and petrochemical industry ,food and feverages industy,laundry and dry cleaning industy,concrete blocks curing industry, hospital and school ect. the biggest advantage of xinda boiler is the steam will come out only in 5 minutes, save cost and save time, they are very suitable for the small and medium-sized factory or new factory.
