DZL Biomass Fired Steam Boiler

DZL Biomass fired steam boilers, are horizontal three-pass water & fire tube boilers with a chain grate stoker structure. Threaded pyrotechnic tubes are arranged in the drum to form a convection heating surface,while the drum and the water walls on both sides from a radiation heating surface in the furnace.

1.Characeteristics of DZL Biomass Fired Steam Boiler

  • Durable and Long life time.
  • Enough steam output, less heat dissipation, high thermal efficiency, lowest consumption.
  • High efficiency dust collector, more Eco-friendly.
  • Full automatic control, Protection devices for overheating, over-pressure, lacking water, leak detection, flame-out
  • Automatic fuel feeding, automatic water feeding, automatic ash remove so on.DZL Boiler

2.Technical Data Of DZL Biomass Fired Steam Boiler

TypeDZL1DZL2DZL4DZL6DZL10DZL20
Project
Rated Steam Capacity (t/h)12461020
Rated Working Pressure (Mpa)1.0/1.25/1.651.0/1.25/1.651.0/1.25/1.651.0/1.25/1.651.0/1.25/1.651.0/1.25/1.65
Rated Steam Temperature (℃)184/194/204184/194/204184/194/204184/194/204184/194/204184/194/204
Feeding Water Temperature (℃)202020202020
Water Capacity (m³)2.94.766.628//
Overall Size (mm)5191*2100*28765800*2600*33006630*2950*34007050*2950*37307746*3773*34418915×3373×3337
Total Weight (T)16.622.728305687

3. Application Of DZL Biomass Fired Steam Boiler

DZL Biomasss fired steam boilers are widely used for the following industrial production

  • Textile industry – dyeing machine, drying rooms, high temperature machine, resin setting machine.
  • Food industry – cooking, drying, vegetable oil refining.
  • Chemical industry – oil chemistry, polymer industry, reaction tanks, distillation, concentration.
  • Plastics industry – plastics fired, extruded shape.
  • Rubber industry – hot press, hot extent, extrusion, vulcanization molding, injection, etc.
  • Paper industry – drying, corrugated paper processing, calender, glue roller.
  • Wood industry – hot processing, heat setting.
  • Hotel – cooking, bathing, laundry, central heating, etc.

steam generator application

by XINDA XINDA No Comments

CWHS Biomass Fired Hot Water Boiler

1.Characteristics Of 60-3500kw Biomass Fired Hot Water Boiler

  • 360° vortex cyclone combustion heat transfer time extended by 40%.
  • The boiler is horizontal tube structure, which is convenient for maintenance.
  • Double boiler furnace, Double power.
  • LCD screen, the boiler operation is clear at a glance.

2.Technical Data Of 60-3500kw Biomass Fired Hot Water Boiler

Model(MW)60120240350480600
Calorific value(Kcal)5*10⁴10*10⁴20*10⁴30*10⁴40*10⁴50*10⁴
Working pressure(Mpa)0
Outlet/return water temperature(℃)85/65(90/70)
Thermal efficiency(%)>=90
Inlet/outlet caliberDN40DN50DN65
Power consumption(kw)2.673.13.94.94.96.1
Fuel storage capacity(kg)100120150180
Fuel consumption(kg/h)1225497097120
Transport size(mm)1550*550*14001950*780*14602300*900*16002600*1020*18002600*1100*18002700*1050*2000



Model(MW)70010501400210028003500
Calorific value(Kcal)60*10⁴90*10⁴120*10⁴180*10⁴240*10⁴300*10⁴
Working pressure(Mpa)0
Outlet/return water temperature(℃)85/65(90/70)
Thermal efficiency(%)>=90
Inlet/outlet caliberDN80DN100DN125DN150
Power consumption(kw)6.110.321220.524.324.3
Fuel storage capacity(kg)30050090010001200
Fuel consumption(kg/h)1225497097120
Transport size(mm)1550*550*14001950*780*14602300*900*16002600*1020*18002600*1100*18002700*1050*2000

3.Application Of 60-3500kw Biomass Fired Hot Water Boiler

steam generator application

XINDA Biomass Fired Hot Water Boiler Application: Food industry, Biological equipment industry, Chemical industry, Garment industry, Ironing washing, Packaging industry, Concrete conservation , Pharmaceutical industry, Cleaning, Bath Heating,Greenhouse Farming,Leisure Industry,Service Industry, Textile Industry,Food service Industry, etc..

4.Picture Of 60-3500kw Biomass Fired Hot Water Boiler

5.XINDA Main Product Scope

by XINDA XINDA No Comments

DZH Biomass Fired Steam Boiler

DZH Biomass fired moving grate boiler is single drum boiler with both water tube and fire tube, the combustion equipment is DZH Boiler Drawingmoving grate. Water wall tubes at left and right sides of furnace are the radiated heating area. the two wings at furnace and spirally corrugated tubes in the drum are convection heating area. This biomass fired moving grate boiler uses the upper drum, water wall tube and head are in symmetrical arrangement mode. The furnace structure is in reasonable arrangement to achieve high efficiency.

1.Features Of DZH Biomass Fired Steam Boiler

  • Moving grate made of cast iron, large furnace design, manual stoker, good applicability of fuel, coal, wood, wood waste, biomass, etc. can be used as fuel for boiler.
  • Few moving parts, less investment, low operating costs, low maintenance costs.
  • Forced ventilation, pressure boost fast to make sure enough output.
  • Boiler is compact structure, easy to install, reducing the cost of the boiler room and installation cost.
  • Steam boiler is single drum design big water volume, ability to adapt to changes in load.
  • Sufficient combustion, large heating surface, boiler adopt efficient threaded pipe, so the boiler thermal efficiency higher than the national standard.

2. Technical Data Of DZH Biomass Fired Steam Boiler

TypeDZH0.5DZH1DZH2DZH4DZH6
Project
Rated Steam Capacity (t/h)0.51246
Rated Working Pressure (Mpa)1.0/1.25/1.651.0/1.25/1.651.0/1.25/1.651.0/1.25/1.651.0/1.25/1.65
Rated Steam Temperature (℃)184/194/204184/194/204184/194/204184/194/204184/194/204
Feeding Water Temperature (℃)2020202020
Water Capacity (m³)2.334.766.6/
Fuelbiomass pellet, wood
Overall Size (mm)3675*2075*26164316*2200*27054945*2650*31975853*2800*3210/
Total Weight (T)7.81014.519.5/

3. Application Of DZH Bioamss Fired Steam Boiler

DZH Biomass fired steam boiler is widely used for the following industrial production

  • Textile industry – dyeing machine, drying rooms, high temperature machine, resin setting machine.
  • Food industry – cooking, drying, vegetable oil refining.
  • Chemical industry – oil chemistry, polymer industry, reaction tanks, distillation, concentration.
  • Plastics industry – plastics fired, extruded shape.
  • Rubber industry – hot press, hot extent, extrusion, vulcanization molding, injection, etc.
  • Paper industry – drying, corrugated paper processing, calender, glue roller.
  • Wood industry – hot processing, heat setting.
  • Hotel – cooking, bathing, laundry, central heating, etc.

steam generator application

by XINDA XINDA No Comments

3-360kw Electric Steam Generator

1.Characteristics Of 3-360kw Electric Steam Generator

  • High quality steam can be produced continuously in a short time.
  • Reasonable design structure can be conducive to installation, operation and energy saving.
  • The boiler shell is made of high quality steel with high strength and corrosion resistance.
  • High pressure vortex pump, short water supply time, durable.
  • Electric steam generator can be used for steam flushing and heating.
  • The whole machine leaves the factory, users only need to install pipes, instruments, valves and other accessories.
    electric steam generator

    electric steam generator

2. Introduction Of 3-360kw Electric Steam Generator

  • Control box: the controller is the heart of the steam generator, it has these functions: automatic water feed, automatic heating, automatic protection, low water level alarm, overpressure protection, leakage protection.
  • Water pump: water pump is the water supply device of steam generator, water pump can automatically feed water when the steam boiler is short of water or no water.
  • Pressure controller: its function is to output the switch signal under different pressure, which has been adjusted to the appropriate pressure at the factory.
  • Water level electrode: it is an important part of water level control of steam generator. It realizes the automatic control of water level by using the different conductivity of water and steam.
  • Safety valve: Safety valve is the safety protection device of steam generator. When the boiler is turned on, the safety valve will not stop at the set pressure due to various reasons. When the pressure is exceeded, the safety valve will automatically open and discharge pressure to reduce the pressure in the steam generator, that can protect the boiler operation safety.

3.Technical Data of 3-360kw Electric Steam Generator

ParameterUnitLDR-3LDR-6LDR-9LDR-12LDR-18LDR-24LDR-27LDR-30LDR-36
Electric Powerkw/h369121824273036
Adjustable Powerkw33/66/99/129/1812/24273018/36
Rated Steam Capacitykg/h4812162430364050
Rated Steam PressureMpa0.4/0.7
Steam Temperature151/171
Power SupplyV220/380220/380380
Water Tank VolumeL181820202828.528.529.529.5
Efficiency%98
Sizemm410*680*1000510*650*1050750*710*1050
Packing Sizemm410*680*820470*650*950750*710*900
Shipping Weightkg507085













ParameterUnitLDR-48LDR-54LDR-60LDR-72LDR-90LDR-108LDR-144LDR-180LDR-216LDR-360
Electric Powerkw/h4854607290108144180216360
Adjustable Powerkw24/4827/5430/6024/48/7230/60/9036/72/10848/96/14460/120/18072/144/216120/240/360
Rated Steam Capacitykg/h657580100130144200250288480
Rated Steam PressureMpa0.4/0.7
Steam Temperature151/171
Power SupplyV380
Water Tank VolumeL29.5
Efficiency%98
Sizemm710*640*11001500*1100*18002100*1300*1800
Packing Sizemm710*640*11001500*1100*18002100*1300*1800
Shipping Weightkg150200300



4.Application of 3-360kw Electric Steam Generator

steam generator application

XINDA Electric Steam Generator Application:

  • Clothing washing and ironing industry: dry cleaners, dryers, washers, dehydrators, ironing machines, irons and other equipment supporting the use.
  • Food machinery industry: tofu machine, steam box, sterilization tank, packaging machine, coating equipment, sealing machine and other equipment supporting the use.
  • Packaging machinery industry: labeling machine, label machine supporting the use.
  • Biological chemical industry: fermentation tank, reaction kettle, sandwich pot, blender, emulsifier and other equipment supporting the use.
  • Other industries :(oil field, automobile) steam cleaning industry, (hotel, dormitory, school, mixing plant) hot water supply, (bridge, railway) concrete maintenance, (leisure and beauty club) sauna bath, heat exchange equipment, etc.

5.Picture of  3-360kw Electric Steam Generator

by XINDA XINDA

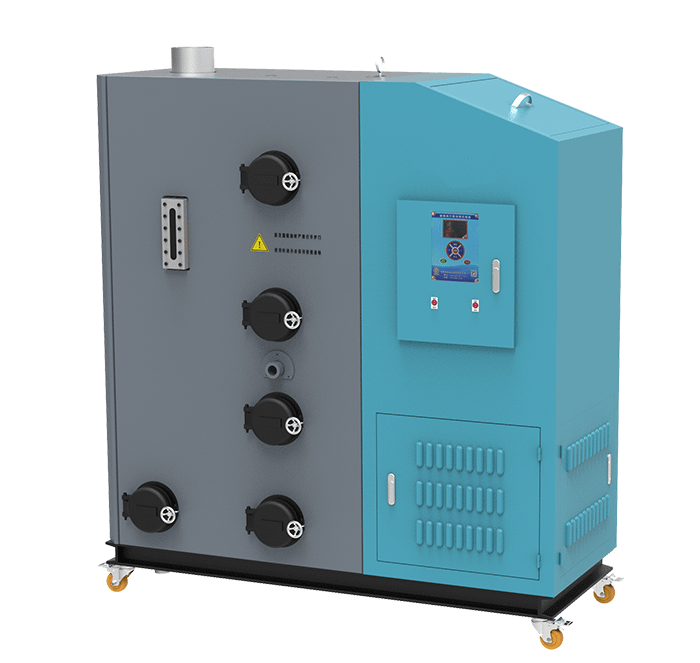

200kg Biomass Steam Generator

1.  Introduction Of Biomass Steam Generator

Biomass steam generator also called biomass steam boiler,it is one type of industry boilers, it mainly used for supplying heat and steam.  comparerd with the traditional industry boiler, this type steam generator with higher efficiency,  heat up only within 5 minutes.it can be classified into single drum fire tube steam generaor (100kg steam generator ,200kg steam generaor, 300kg steam generator) and double drum fire tube steam generator(400kg steam generator,500kg steam generator,600kg steam generator).

2. Characteristics Of Biomass Steam Generator

  • LCD full-automatically intelligent electronic control system
  • Fire tube design, easy for maintaince
  • Double safety valve, more secure
  • Lower water alarm
  • Overpressure alarm
  • Automatic feeding fuel
  • Auotmatic feeding water
  • Easy and fast installation
  • Fool-style operation

3. Fuel Option for Biomass Steam Generator

Biomass fuels are organic materials produced in a renewable manner. It include a lot of types, such as woody fuels,forestry Residues,mill Residues,agricultural Residuesect. wood wastes of all types make excellent biomass fuels, we advise the biomass pellet size : diameter 6-10mm , length 10-30mm.

biomass wod pellet

  • Sawdust pellet
  • Peanut shell pellet
  • Walnut pellet
  • Straw pellet
  • Rice husk pellet
  • Corncob pellet
  • Other biomass pellet



4. Technical Data of 200kg Biomass Steam Generator

Boiler ModelXD0.2-0.7-M
Rated Rated Capacity200kg/hour
Heat Output144kw
Rated Steam Presure0,7mpa / 7 bar
Rated Steam Temperature174 ℃
Heat Up Timein 5 mintus
Power Supply 220v/ 50 hz ( or customized)
Power Supply Value1.6kw
Fule Storage Capacity 110kg
Fuel Consumption26-33kg/hour
Steam outlet DiameterDN25
Safety Valve DiameterDN20
Discharge valve DiameterDN25 / DN15
Chimney DiameterD180mm
Efficiencymore than 90%
Shipping Weight850kg
Shipping Size1700*850*1850mm

5.Application Field of Biomass Steam Generator

Biomass steam generators ( biomass steam boilers ) are widely used for agro industries,chemical and petrochemical industry ,food and feverages  industy,laundry and dry cleaning industy,concrete blocks curing industry ect. the following picture will show the biomass steam generator mainly application field.
