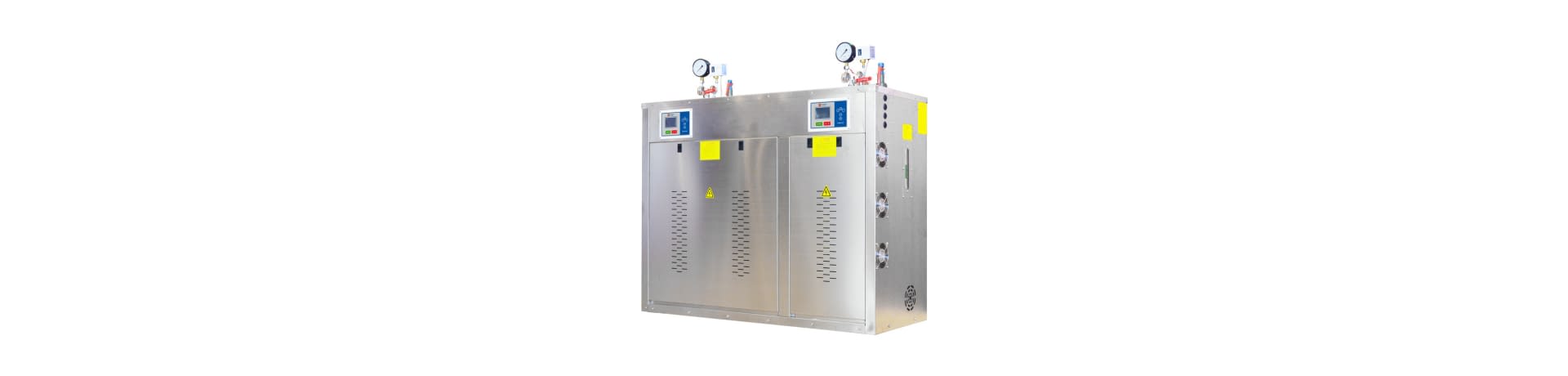

1.Characteristics Of 54-360kw Electric Steam Generator
High quality steam can be produced continuously in a short time.
Reasonable design structure can be conducive to installation, operation and energy saving.
The boiler shell is made of high quality steel with high strength and corrosion resistance.
High pressure vortex pump, short water supply time, durable.
Electric steam generator can be used for steam flushing and heating.
The whole machine leaves the factory, users only need to install pipes, instruments, valves and other accessories.
2. Introduction Of 54-360kw Electric Steam Generator
Control box: the controller is the heart of the steam generator, it has these functions: automatic water feed, automatic heating, automatic protection, low water level alarm, overpressure protection, leakage protection.
Water pump: water pump is the water supply device of steam generator, water pump can automatically feed water when the steam boiler is short of water or no water.
Pressure controller: its function is to output the switch signal under different pressure, which has been adjusted to the appropriate pressure at the factory.
Water level electrode: water level electrode is an important part of water level control of steam generator. It realizes the automatic control of water level by using the different conductivity of water and steam.
Safety valve: Safety valve is the safety protection device of steam generator. When the boiler is turned on, the safety valve will not stop at the set pressure due to various reasons. When the pressure is exceeded, the safety valve will automatically open and discharge pressure to reduce the pressure in the steam generator, that can protect the boiler operation safety.
3.Technical Data of 54-360kw Electric Steam Generator
Parameter
Unit
LDR-54
LDR-60
LDR-72
LDR-90
LDR-108
Electric Power
kw/h
54
60
72
90
108
Adjustable Power
kw
27/54
30-60
24/48/72
30/60/90
36/72/108
Rated Steam Capacity
kg/h
75
80
100
130
144
Rated Steam Pressure
Mpa
0.4/0.7
Steam Temperature
℃
151/171
Power Supply
V
380
Water Tank Volume
L
29
Efficiency
%
98
Size
mm
710*640*1100
1500*1100*1800
Packing Size
mm
710*650*1000
1500*1100*1600
Shipping Weight
kg
150
200
Parameter
Unit
LDR-144
LDR-180
LDR-216
LDR-360
Electric Power
kw/h
144
180
216
360
Adjustable Power
kw
48/96/144
60/120/180
72/144/216
120/240/360
Rated Steam Capacity
kg/h
200
250
288
480
Rated Steam Pressure
Mpa
0.4/0.7
Steam Temperature
℃
151/171
Power Supply
V
380
Water Tank Volume
L
29
Efficiency
%
98
Size
mm
1500*1100*1800
2100*1300*1800
Packing Size
mm
1500*1100*1600
2100*1300*1700
Shipping Weight
kg
200
300
4.Application of 54-360kw Electric Steam Generator
Clothing washing and ironing industry: dry cleaners, dryers, washers, dehydrators, ironing machines, irons and other equipment supporting the use.
Food machinery industry: tofu machine, steam box, sterilization tank, packaging machine, coating equipment, sealing machine and other equipment supporting the use.
Packaging machinery industry: labeling machine, label machine supporting the use.
Biological chemical industry: fermentation tank, reaction kettle, sandwich pot, blender, emulsifier and other equipment supporting the use.
Other industries :(oil field, automobile) steam cleaning industry, (hotel, dormitory, school, mixing plant) hot water supply, (bridge, railway) concrete maintenance, (leisure and beauty club) sauna bath, heat exchange equipment, etc.
